xVanguard VEO 2 Pro Overview
Vanguard - VEO 2 PRO SERIES

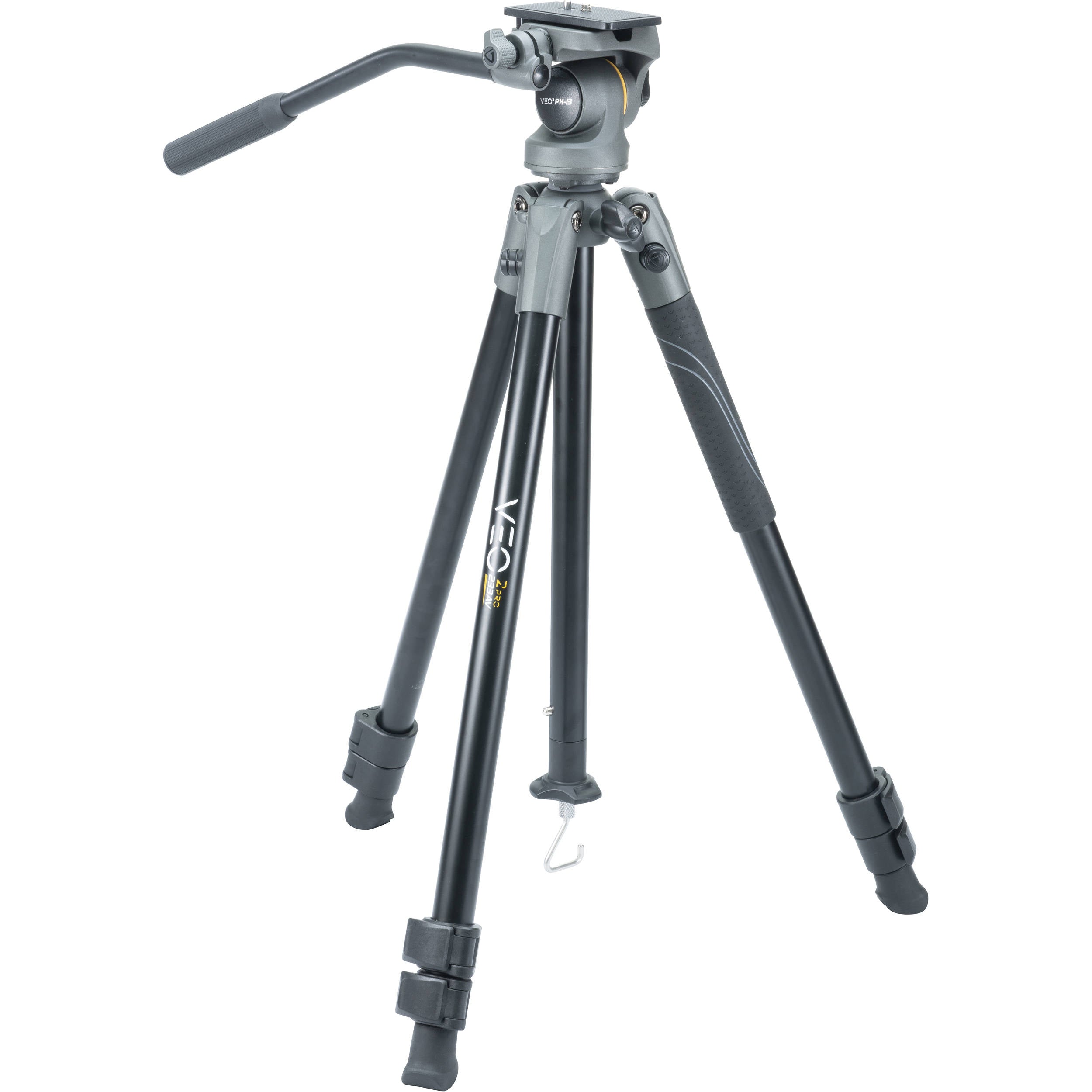

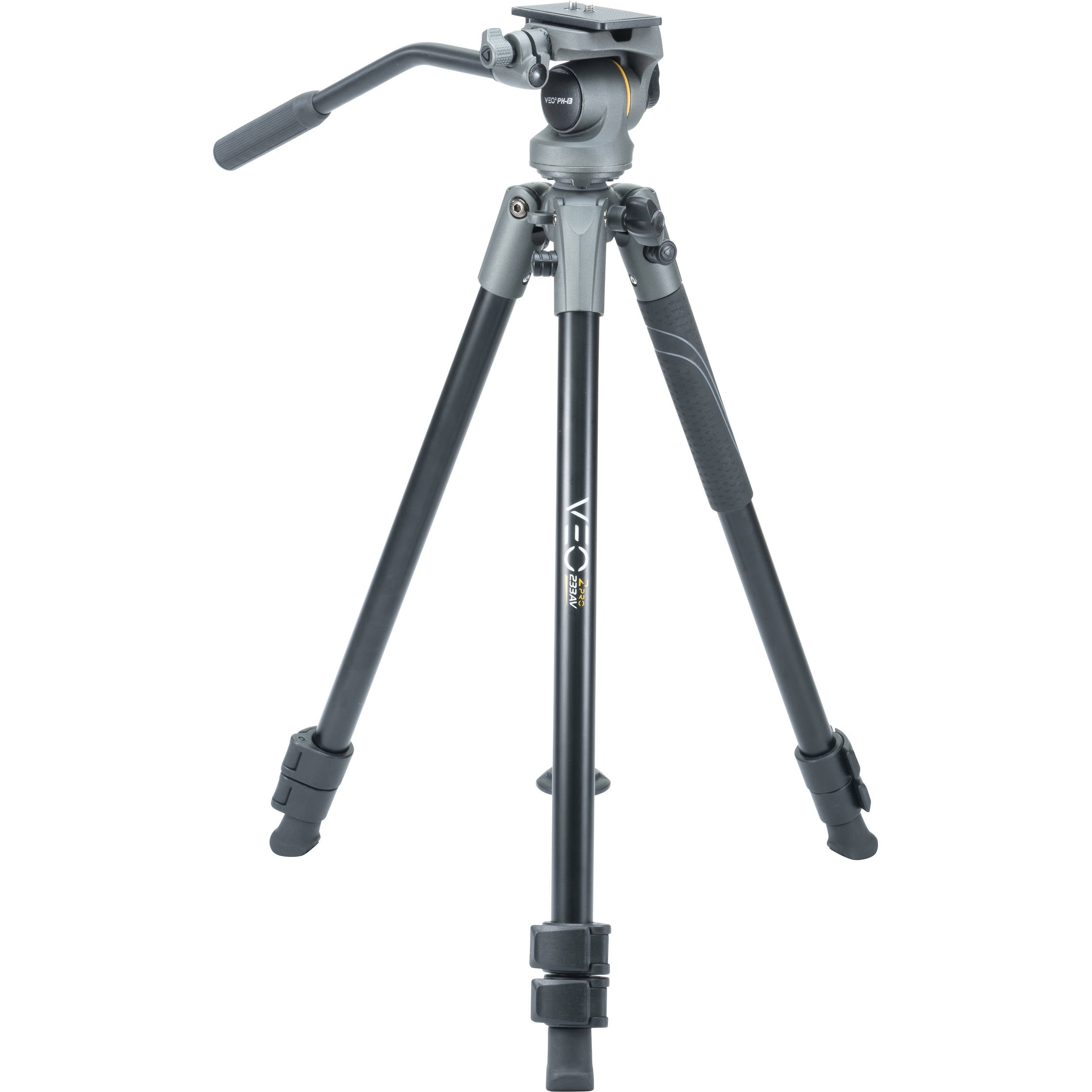

This VEO 2 PRO 233AV Aluminum Tripod Kit with PH-13 Video Head from Vanguard supports up to 8.8 lb, measures 22.8" when folded, and includes a PH-13 pan-and-tilt head. Each of its three-section legs features an independent spread as well as flip locks for fast deployment. Together, the three legs can be adjusted in three positions at 20, 45, and 80° angles to a maximum height of 57.5" with the center column fully raised. Foam covers on each of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet, each with a metal spike option, further enhance stability on a wide variety of surfaces, including soft and uneven soil.

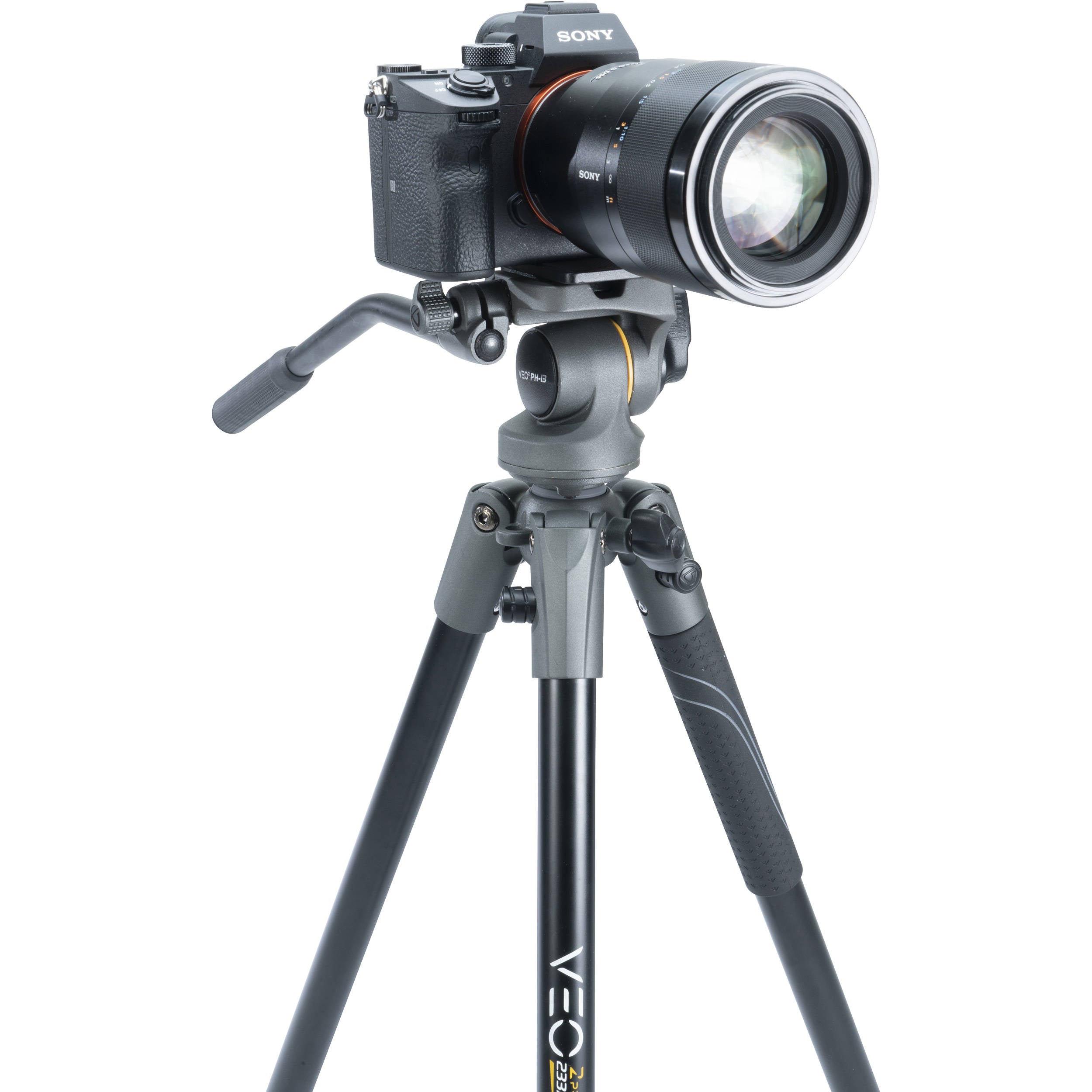

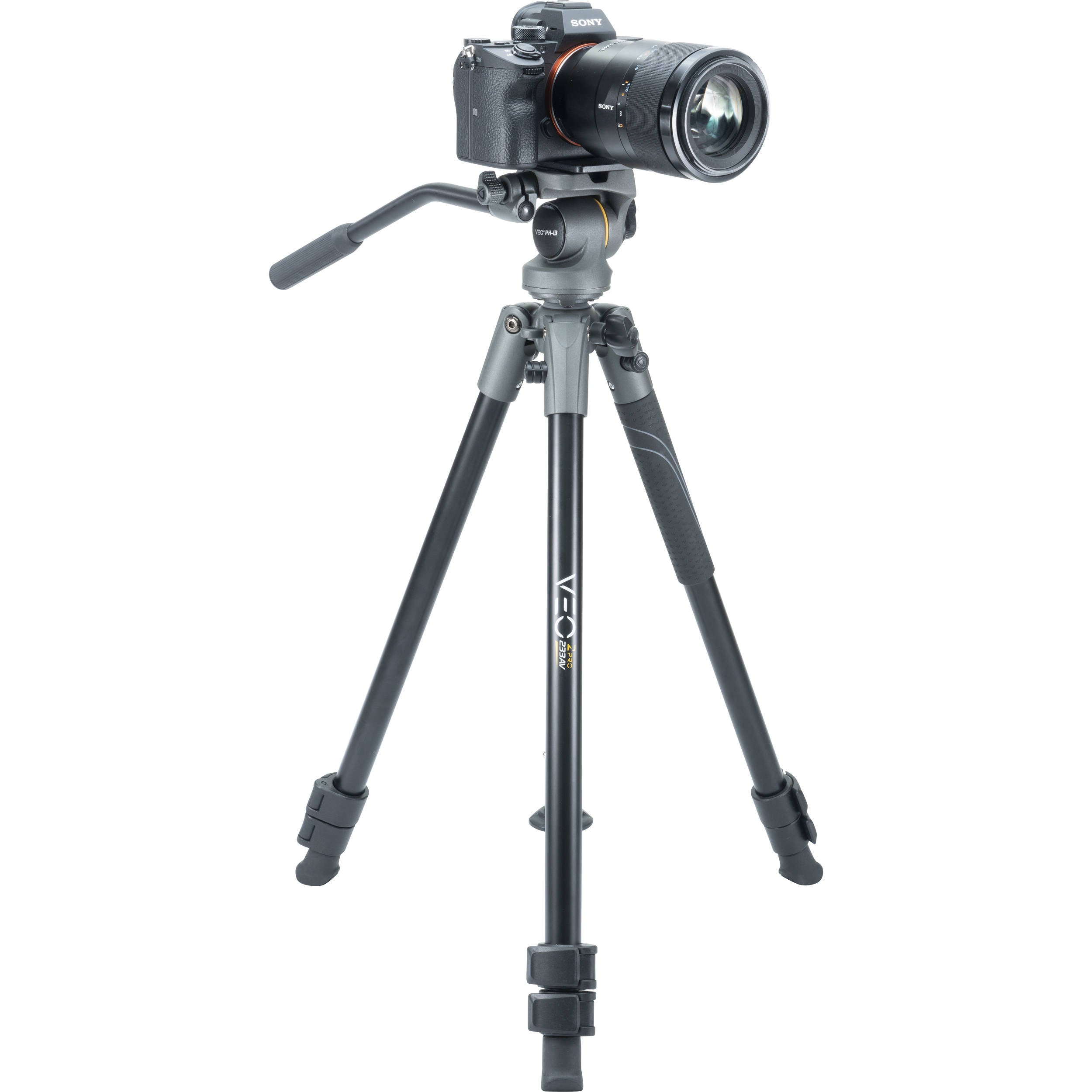

Cameras or accessories connect to the Arca-style plate with the 1/4"-20 thread, which is secured to the tripod's pan-and-tilt head using a quick release lock. The quick release plate features a rubberized, non-slip platform with a safety pin to prevent twisting.

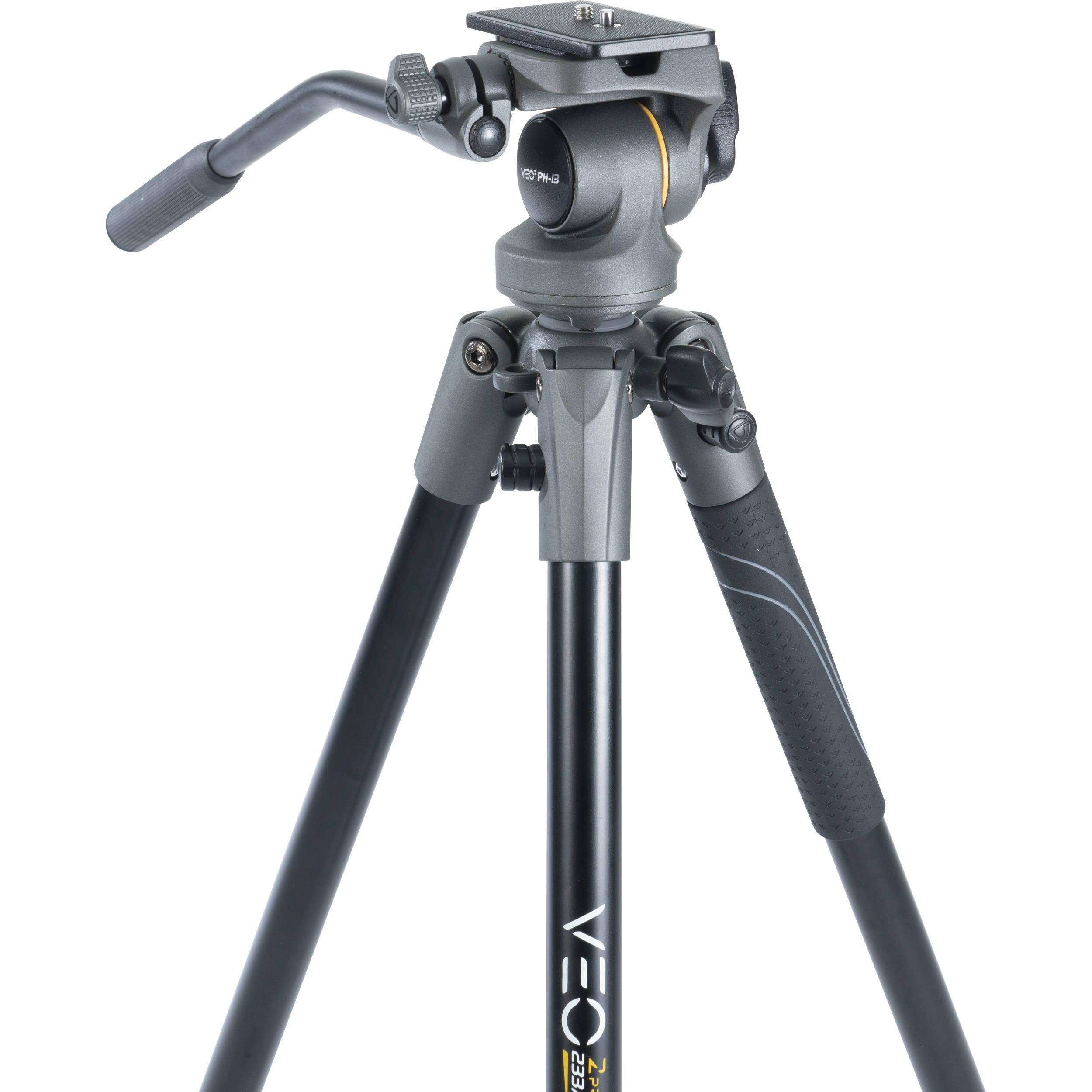

The PH-13 head can be panned 360° and tilted -45° to 90°. Each of these movements function independently of each other and can be locked into place. For added versatility, the center column is connected to the tripod by a fulcrum that makes balancing and locking easy.
A carry bag, low-angle adapter, two Allen wrenches, and a 3/8"-16 screw adapter are included.
Lightweight 3.8 aluminum tripod with PH-13 video head
Supports up to 8.8 lb

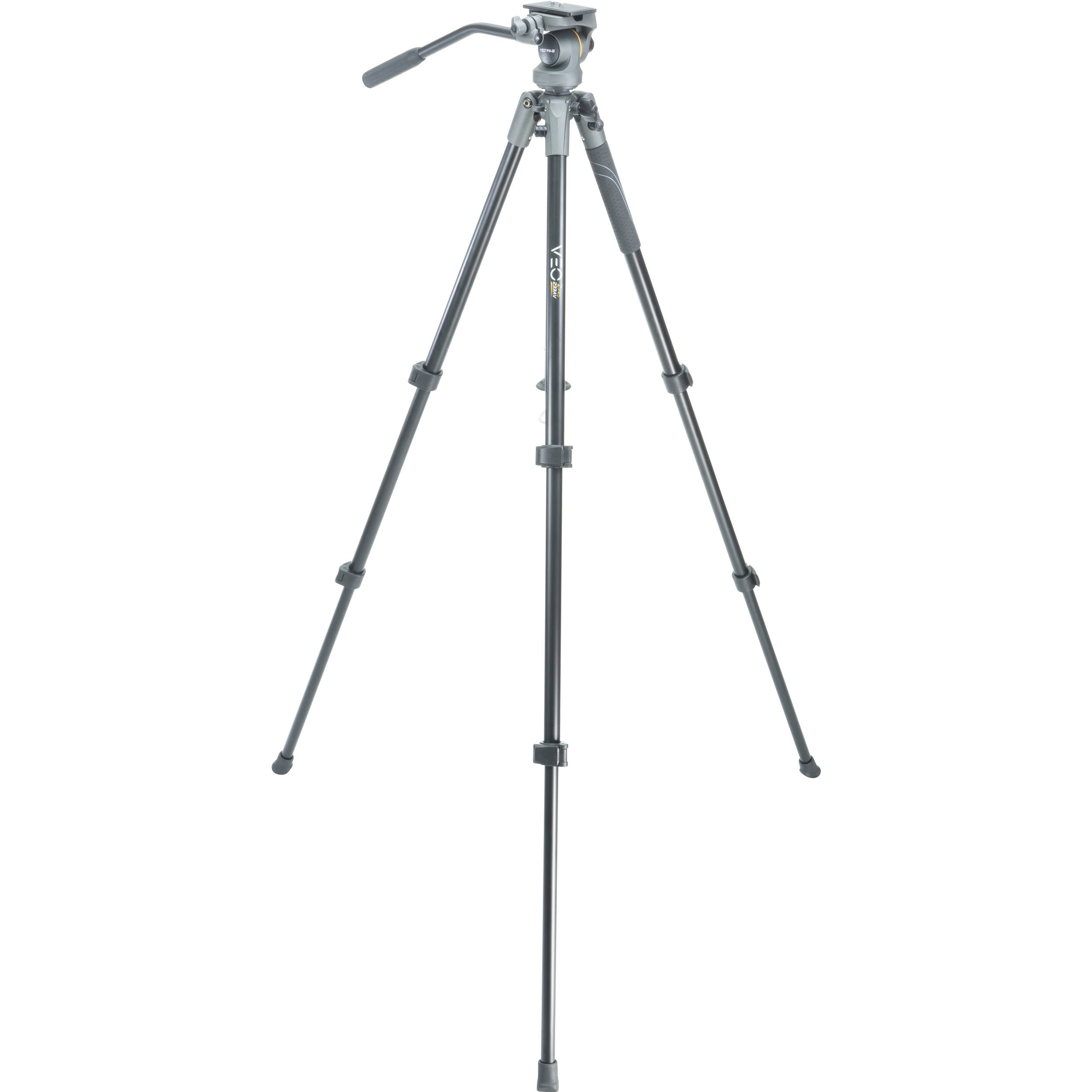

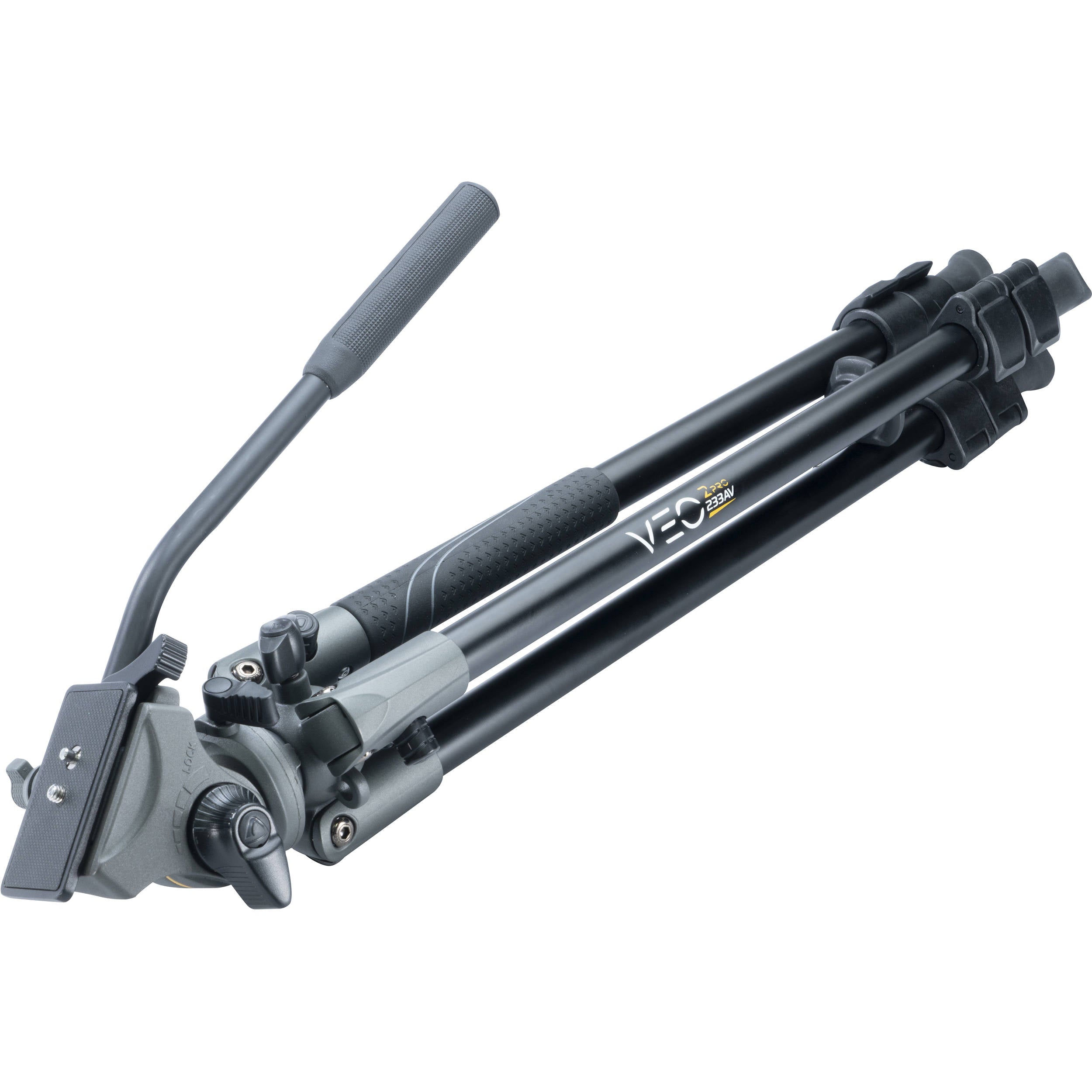

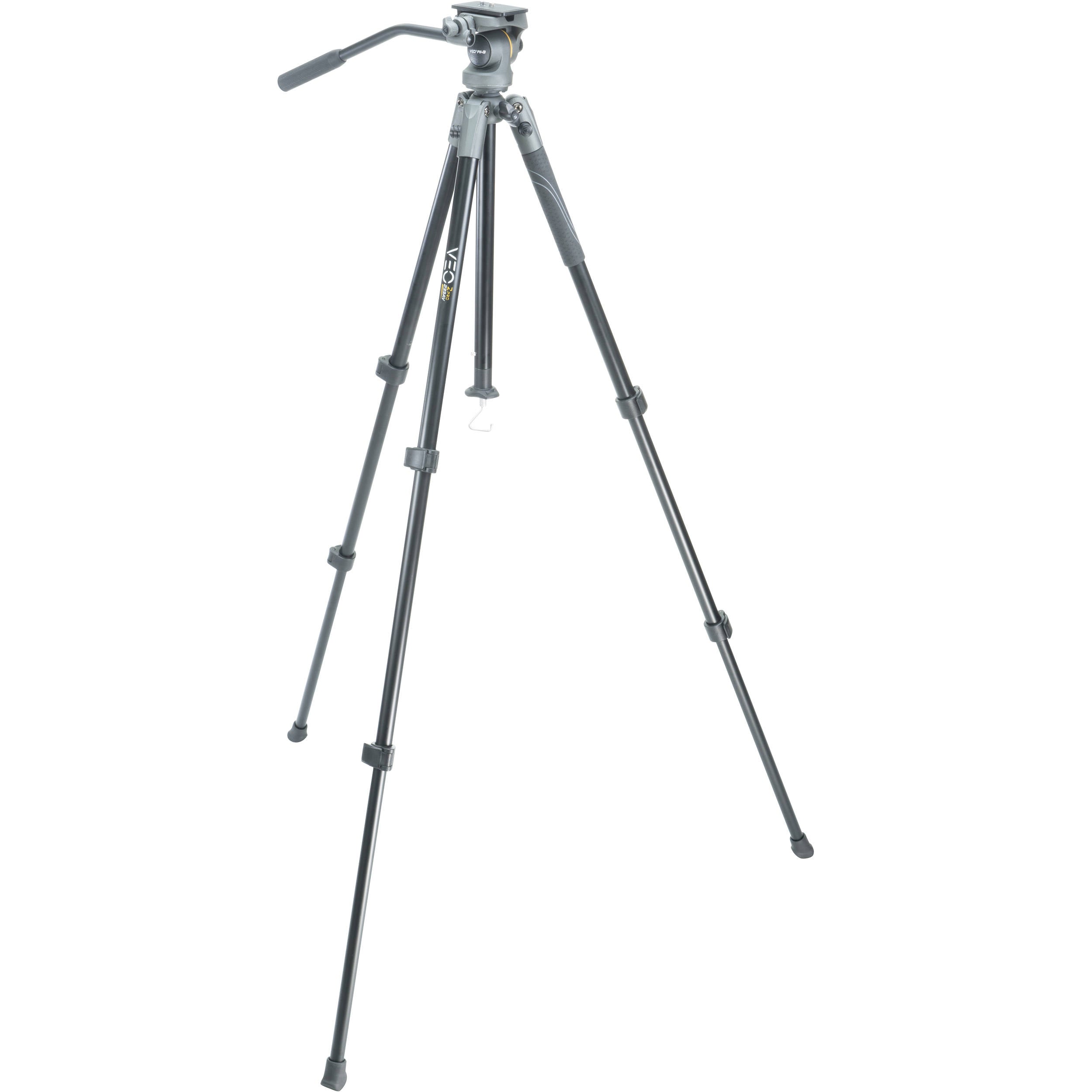

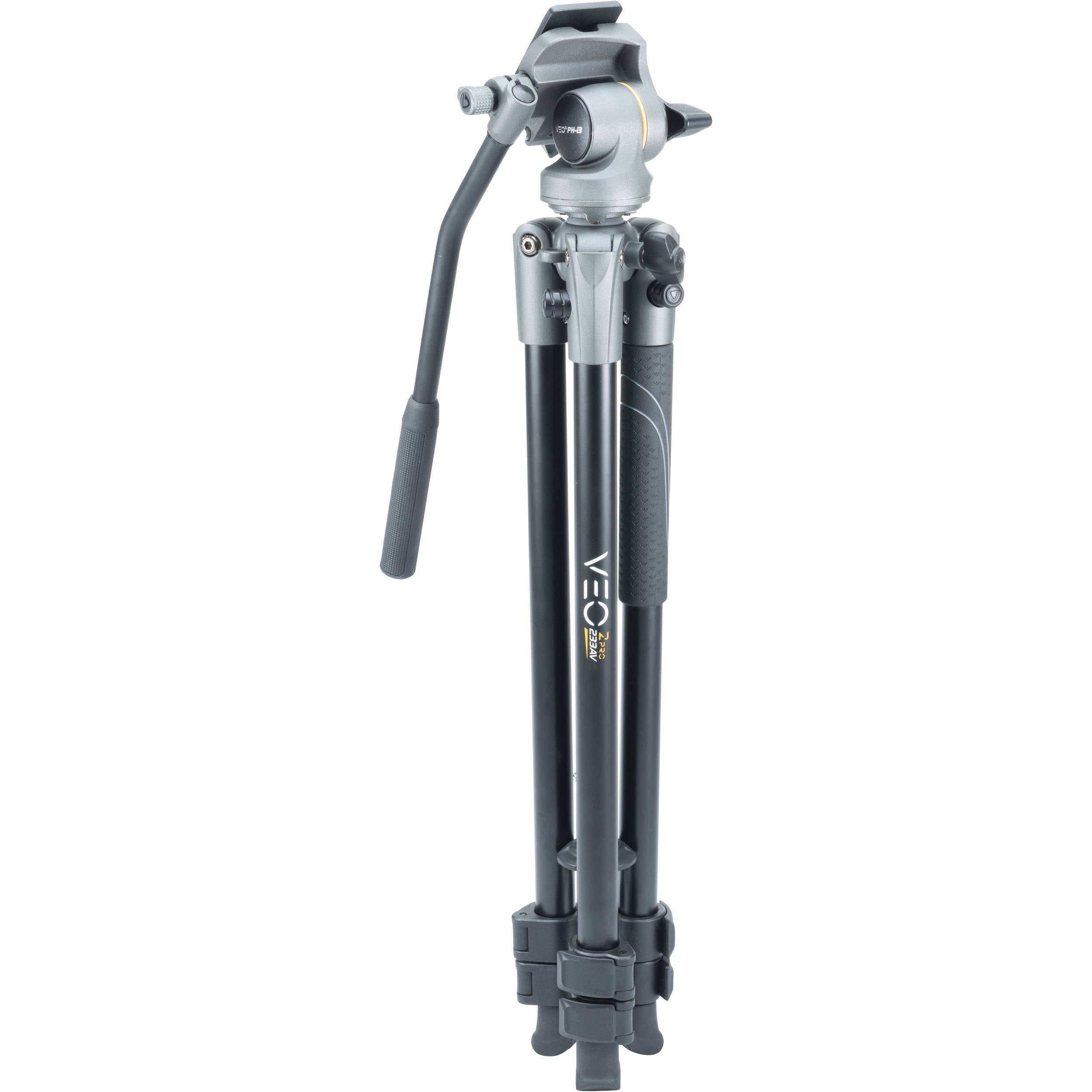

Extends to maximum height of 57.5" and folds down to 22.8"

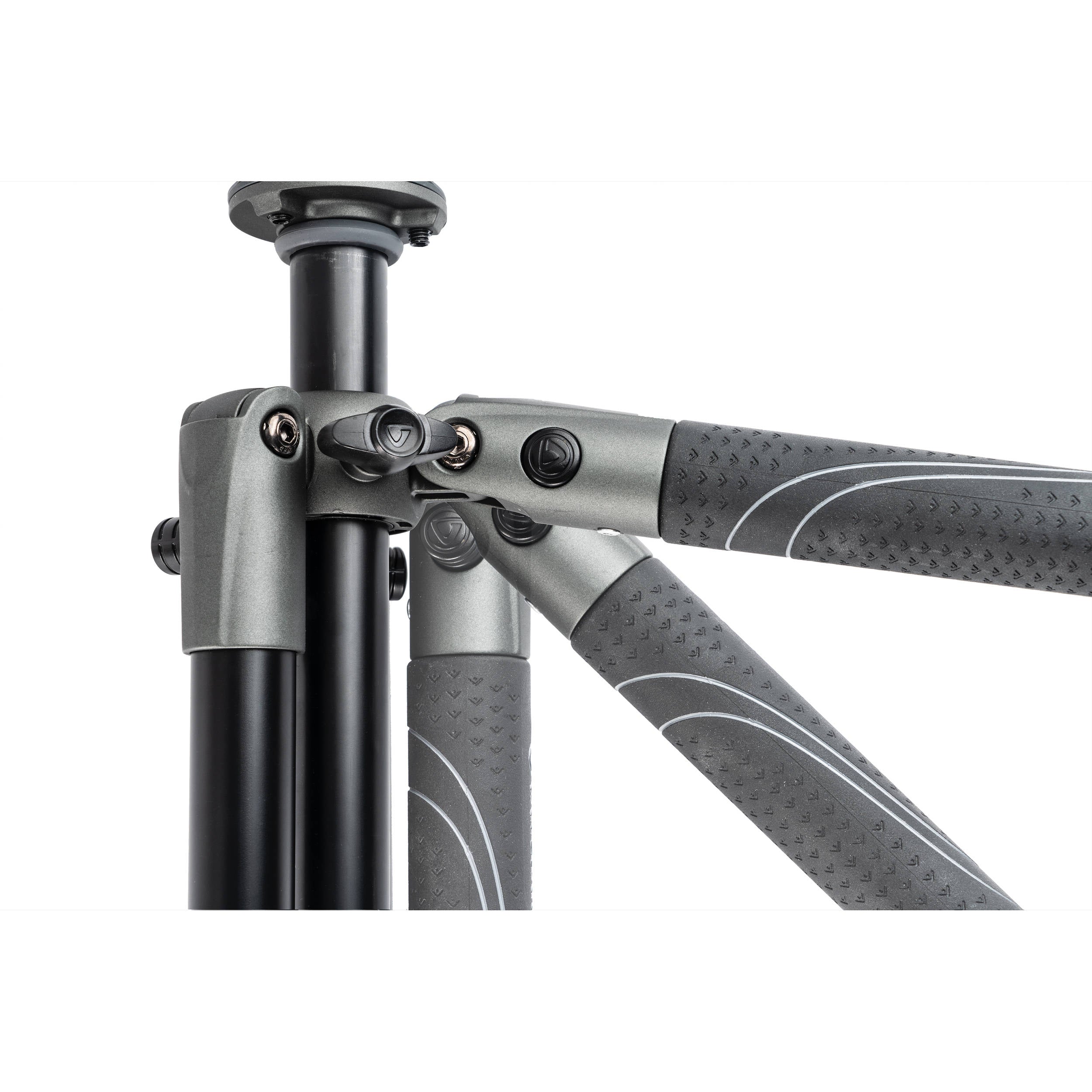

Three-position legs adjust at 20, 45, and 80° angles
Arca-style quick release head
Three-section legs secure with flip locks

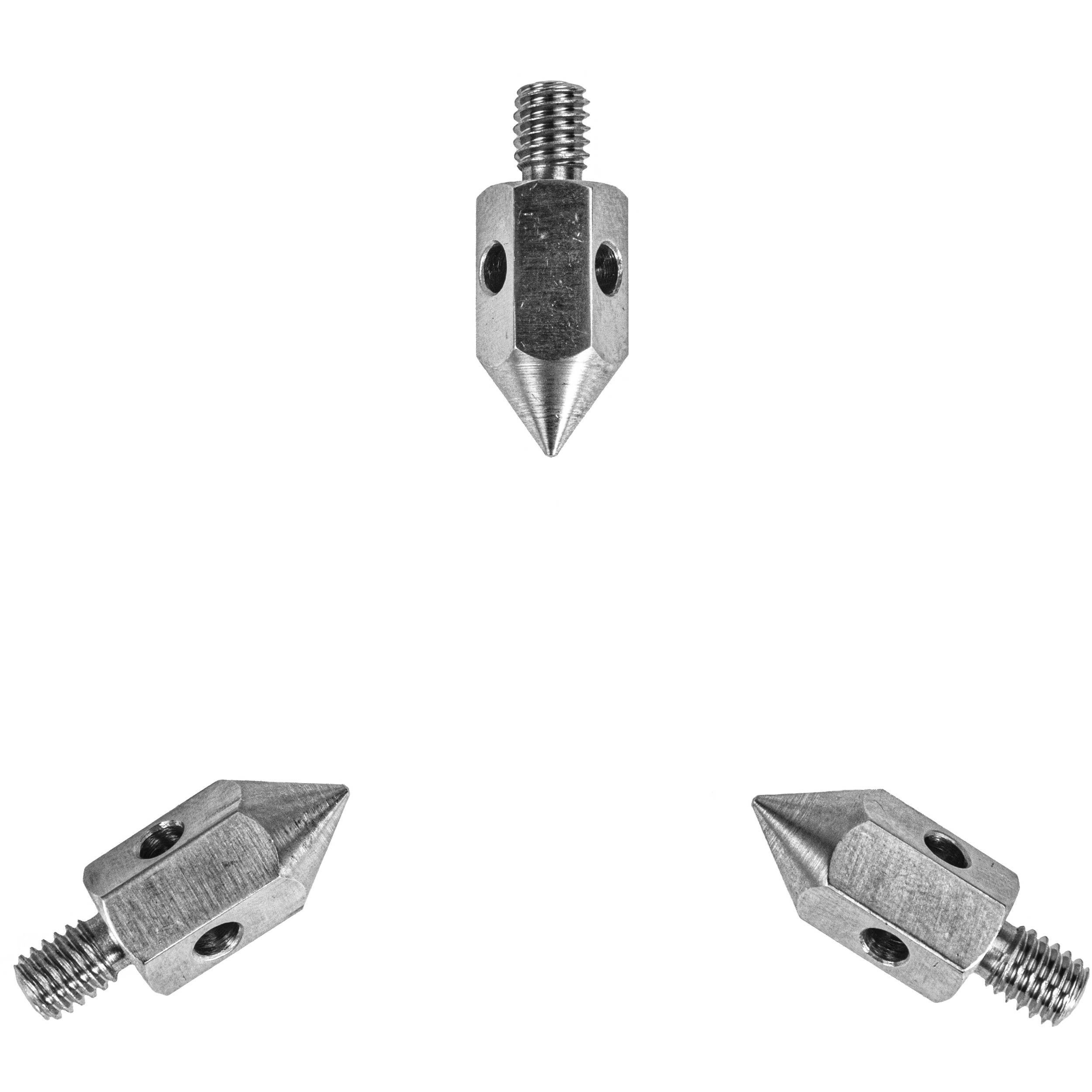

Rubber and spiked feet support tripod on various types of terrain
Low-angle adapter, 3/8"-16 screw adapter, Allen wrenches, and a carry bag are included
UPC: 026196352297
In the Box
- Vanguard VEO 2 PRO 233AV Aluminum Tripod with PH-13 Video Head
- 3-Section Aluminum Tripod Legs
- VEO 2 PH-13 Pan Head with Pan Handle
- Low-Angle Adapter
- Tripod Bag
- Spiked Feet

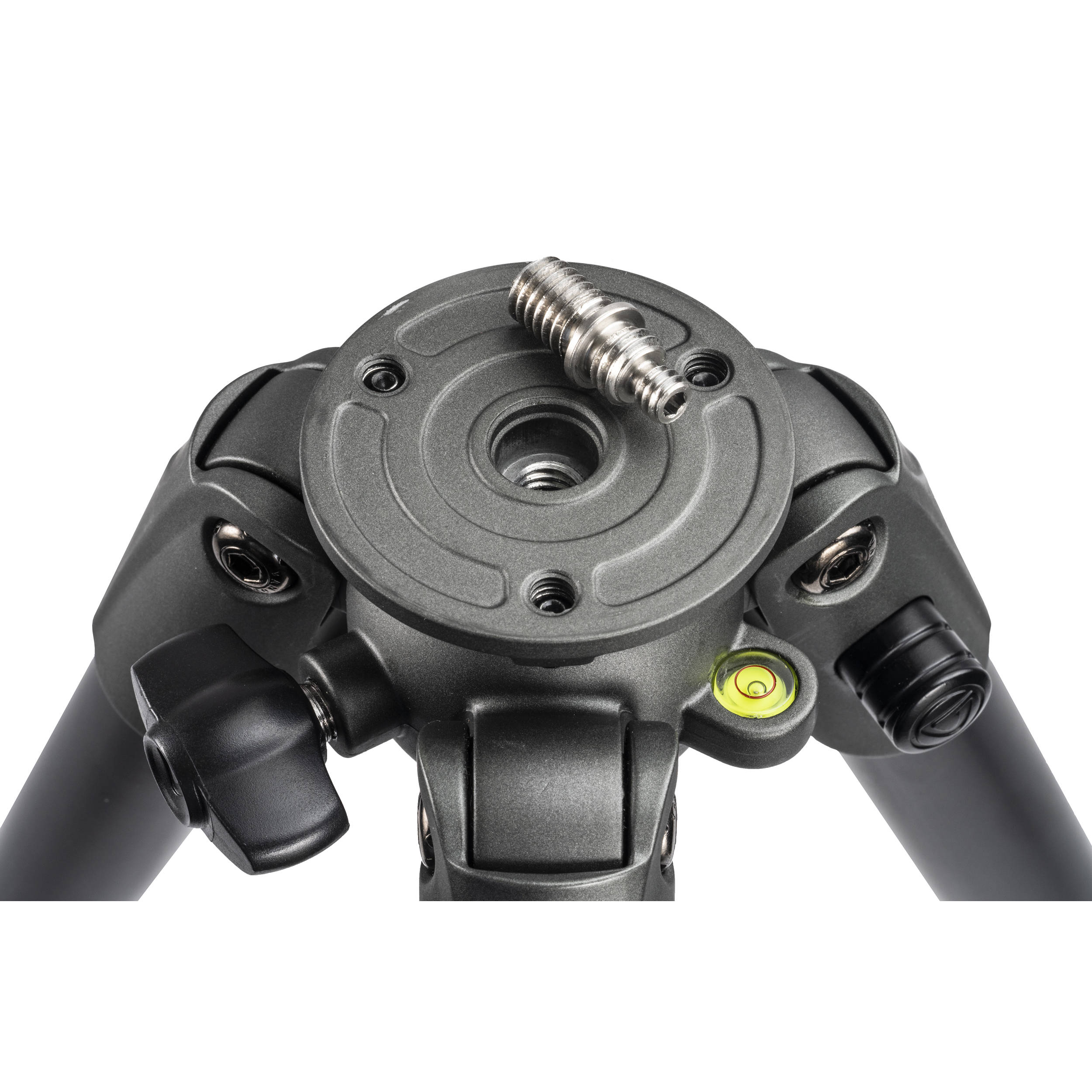

- 3/8"-16 Screw Adapter
- 2 x Allen Wrench
- Limited 2-Year Warranty, Total of 10 Years upon Registration
Vanguard VEO 2 Pro Specs
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | Arca-type |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Safety Lock | Yes |
Head
| Base Mount | Proprietary |
| Camera Platform Adjustment | Yes |
| Pan Handle Fittings | 1 x Fixed |
| Bubble Level | 1 |
| Base Diameter | 2.28" / 58 mm |
Pan & Tilt
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Lateral Tilt | -45° to +90° |
Legs
| Leg Lock Type | Flip Lock |
| Leg Positions | 3 Positions |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Leg Diameter | 0.91" / 23 mm |
| Bubble Level | Yes |
| Feet Features | Rubber, Spiked |
Center Column
| Center Column Features | Ballast Hook |
| Center Column Sections | 1 |
| Center Column Extension Type | Rapid |
General
| Load Capacity | 8.8 lb / 3.99 kg |
| Maximum Working Height | 57.5" / 1.46 m |
| Max Height without Center Column | 46.1" / 117.09 cm |
| Folded Length | 22.8" / 57.91 cm |
| Materials | Aluminum, Magnesium |
| Weight | 3.8 lb / 1.72 kg |
Packaging Info
| Package Weight | 4.96 lb |
| Box Dimensions (LxWxH) | 23.7 x 5.1 x 4.3" |
