Description
x- Load Capacity: 22.0 lb
- Ball-and-Socket Tension Control
- 360° Pan with Independent Lock
- Up to 90° Portrait Angle Tilt
- Arca-Type Compatible Clamp
- Dual, Built-In Bubble Levels
- Quick Release Plate Retaining Pin
- QS-60 V2 Quick Release Plate
- 1/4"-20 Mount, Non-Slip Surface
- Aluminum-Alloy Construction

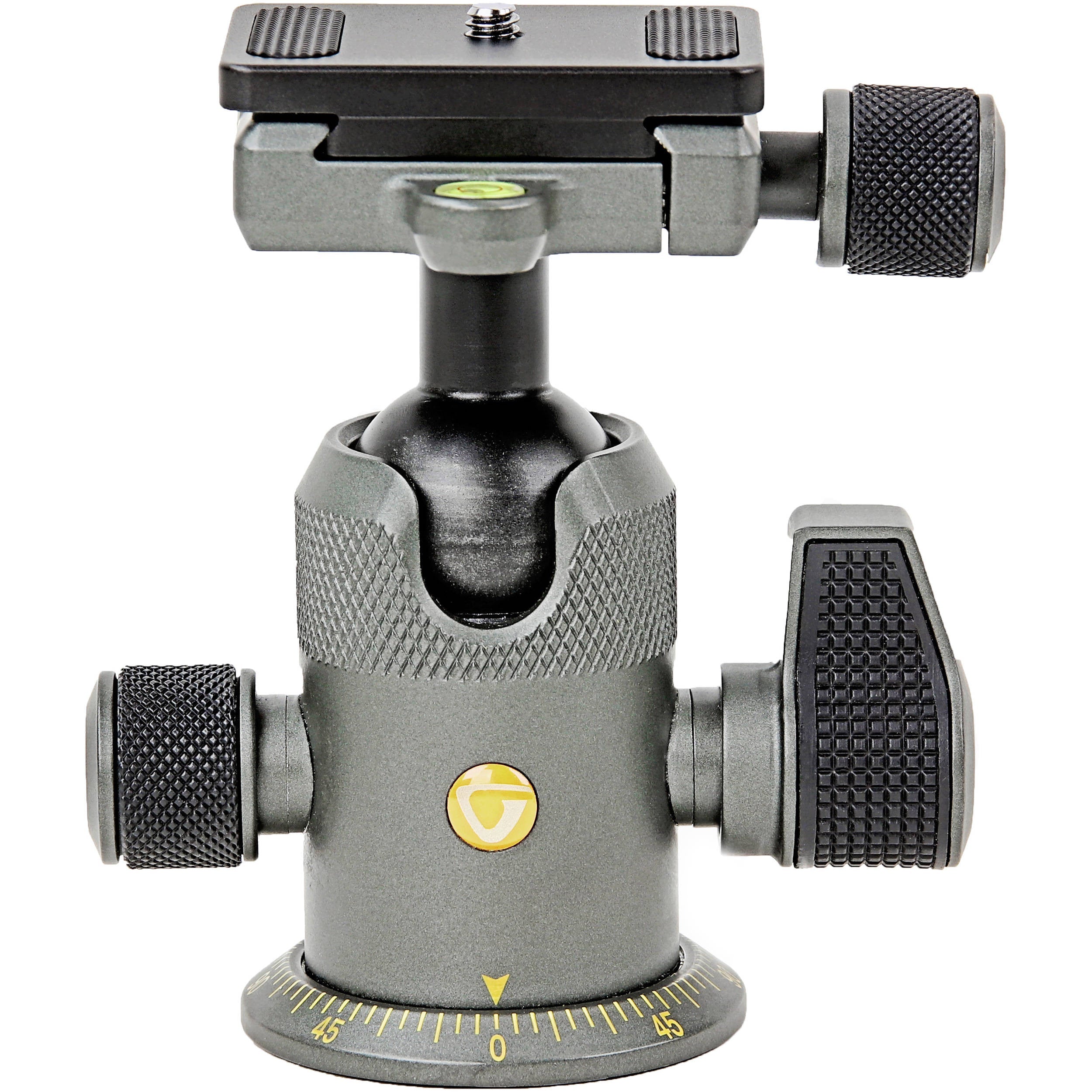

The Vanguard Alta BH-100 is an Arca-type ball head that has a load capacity of 22.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. A reducer bushing is provided, which allows this ball head to be attached to tripods or other support systems that feature a 1/4"-20 mount.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QS-60 V2 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform while two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations.
By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob located above the primary locking knob. Toward the side of the ball head opposite the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.
-
- Arca-type ball head with 22.0 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Reducer bushing included for compatibility with tripods or support systems that feature a 1/4"-20 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large, primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Knurled friction knob located above the primary locking knob applies variable tension on the ball-and-socket joint's movements
- Secondary locking knob with knurled surface allows head to rotate 360°
- Integrated clamp on top of on the ball-and-socket joint is compatible with included QS-60 V2 Quick Release Plate
- Two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations
- Integrated retaining pin on the clamp prevents QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened
- Durable, aluminum-alloy construction
UPC: 026196349419
In the Box
Vanguard Alta BH-100 Ball Head
- QS-60 V2 Quick Release Plate
- 3/8"-16 to 1/4"-20 Reducer Bushing
- Limited 10-Year Warranty
Vanguard BH-100 specs
| Load Capacity | 22.0 lb (10.0 kg) |
| Ball Sphere Diameter | 1.3" (3.2 cm) |
| Quick Release System | Arca-type clamp |
| Quick Release Plate | Yes, 1/4"-20 mount |
| Spirit Level | Yes, dual |
| Tension Control | Yes, for ball-and-socket joint |
| Separate Panning Lock | Yes |
| Tripod Mount Thread Size | 3/8"-16 |
| Height | 4.5" (11.4 cm) |
| Maximum Diameter | 2.3" (5.7 cm) |
| Weight | 1.0 lb (0.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 5.3 x 4.4 x 3.9" |
