Description
xHYTE Y60 Overview
- 1Description
- 2
- 3Motherboard & Expansion Support
- 4Storage Solution
- 5Cable Management Space
- 6Cooling Capabilities
- 7Connectivity
Turn your PC into the centerpiece of your game room with the

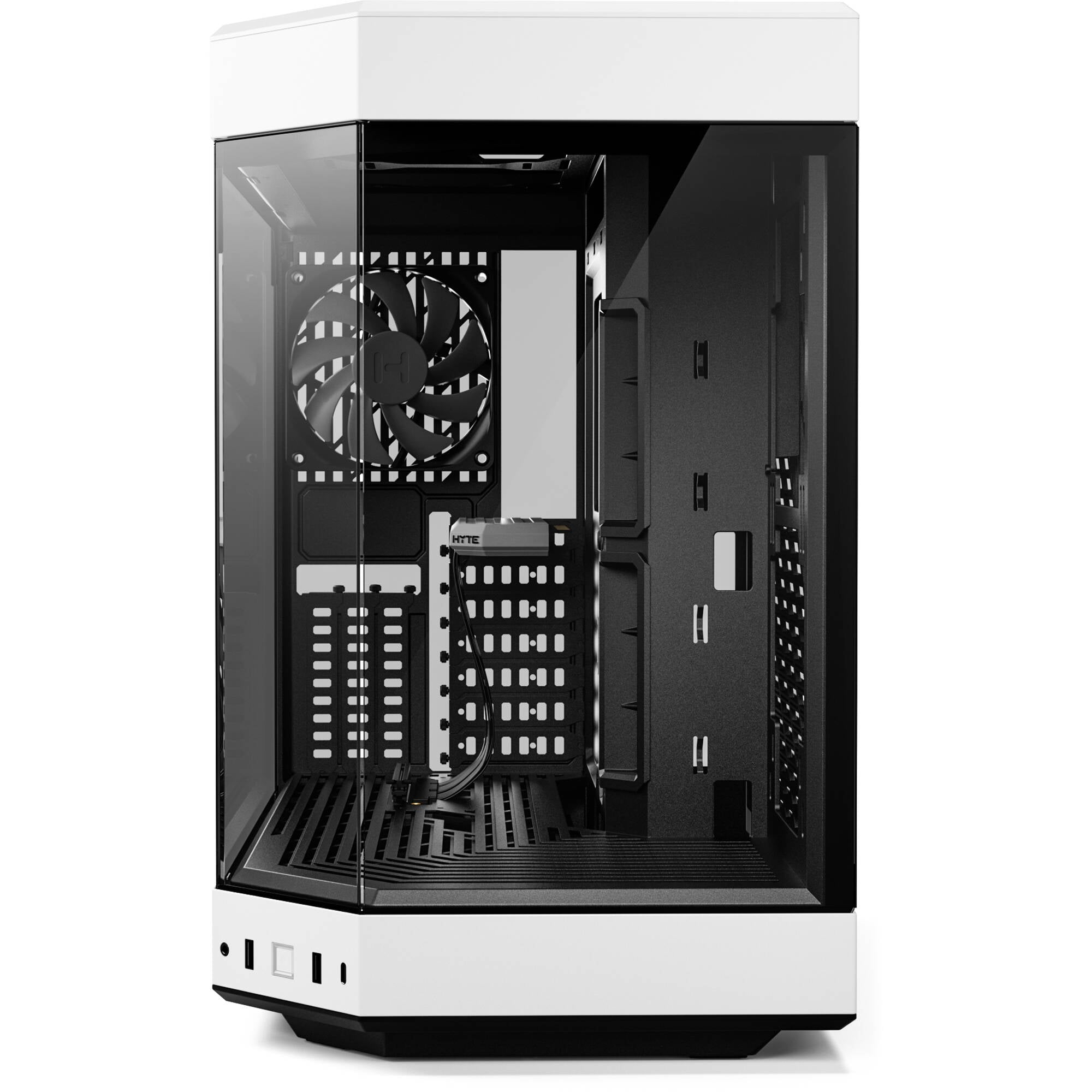

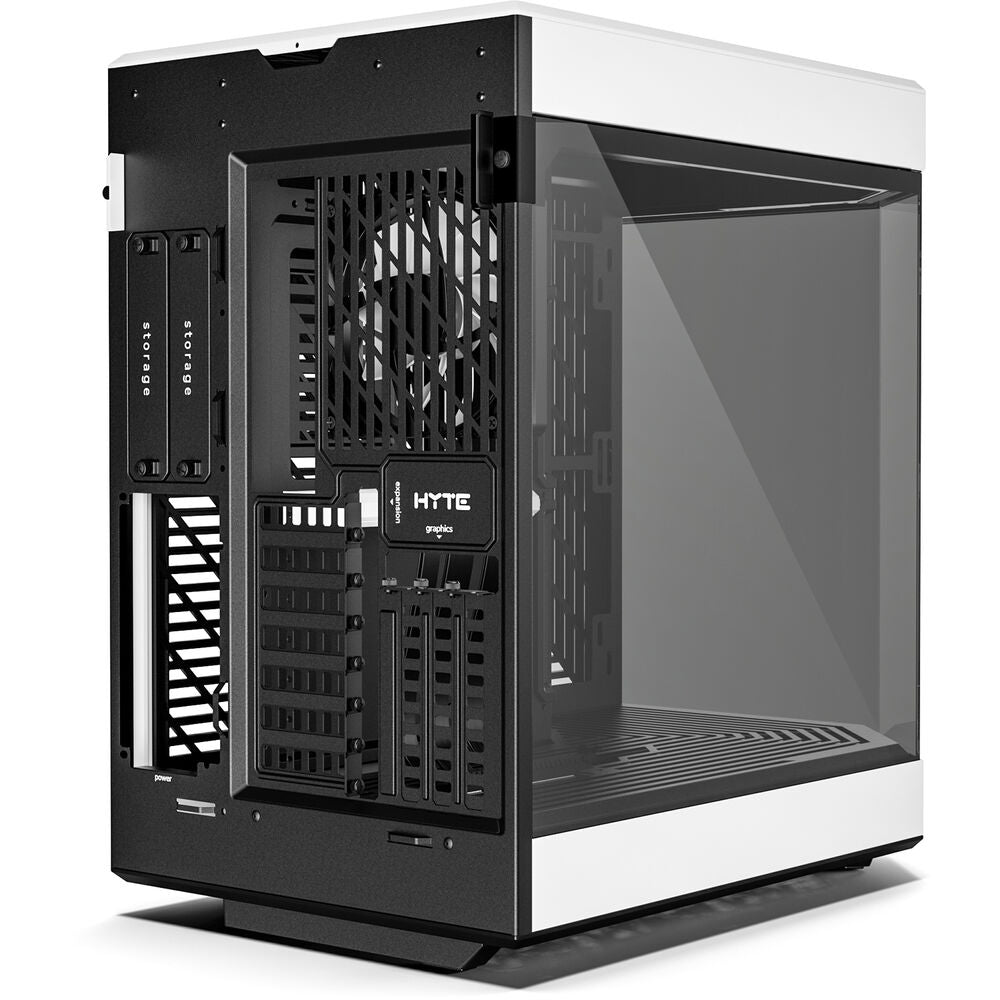

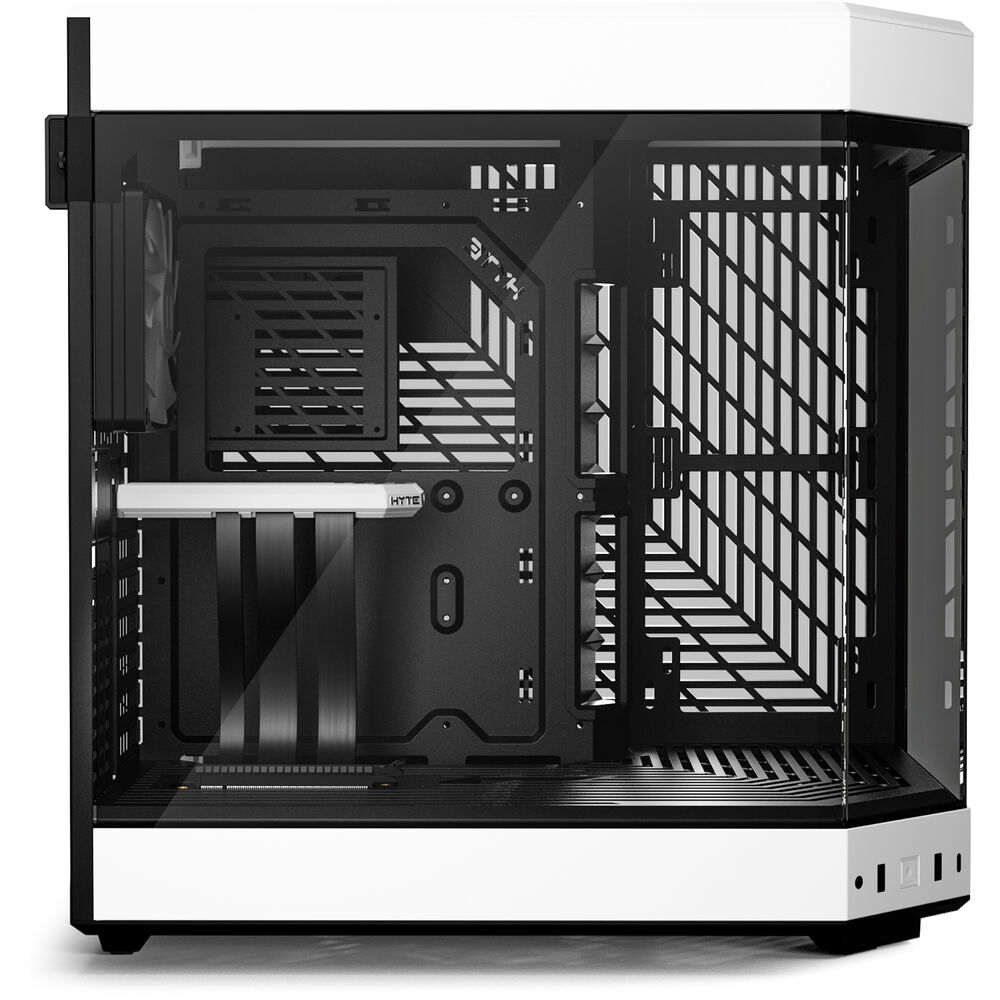

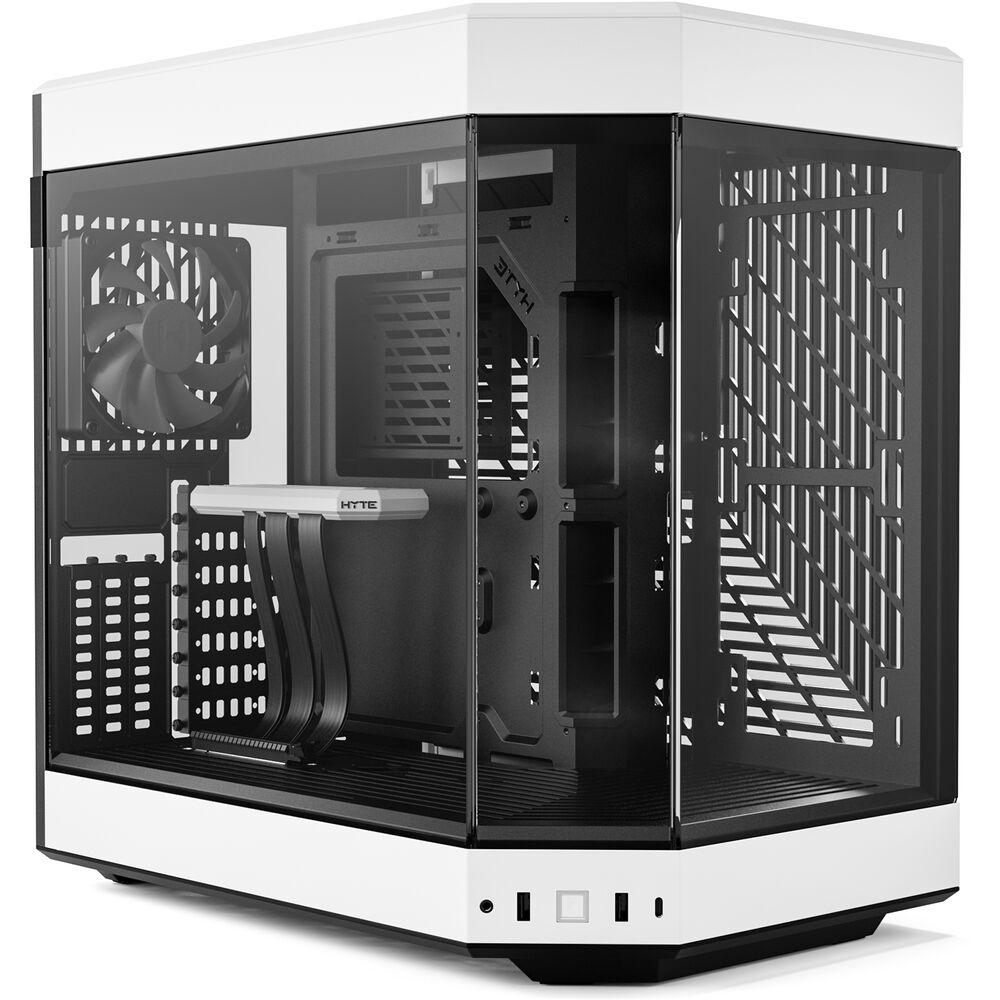

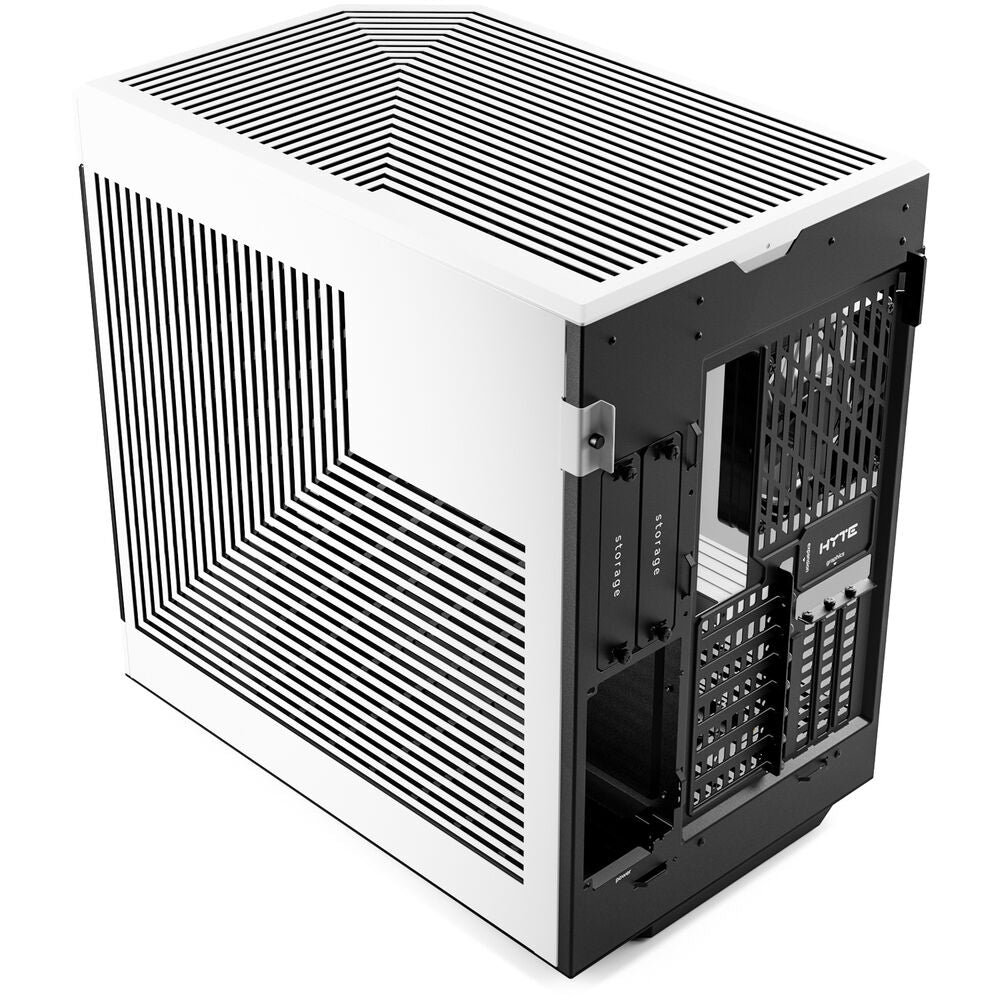

HYTE Y60 Mid-Tower Case. Designed to show off your components with a wrap-around tempered glass panel, you can admire your hard work from the comfort of your gaming chair. Full 360° access and flexible design enables builders to install a wide range of components with ease.
Motherboard & Expansion Support
The mid-tower form factor supports a wide range of motherboard sizes including ATX, M-ATX, M-ITX, and even E-ATX. Six standard half-height horizontal expansion slots are available for smaller utility cards while three full-height vertical slots allow you to install and show off graphics cards up to 14.7" long. A PCIe 4.0 x16 riser card is included with the Y60 so you can conveniently get your build together without hunting for another component.
Storage Solution
The Y60 can hold up to two 3.5" HDDs or four 2.5" SSDs, allowing you to easily expand your storage depending on the scale of your digital library. Dedicated housing chambers assist in organizing your SATA and power cables for a neat and clean look.
Cable Management Space

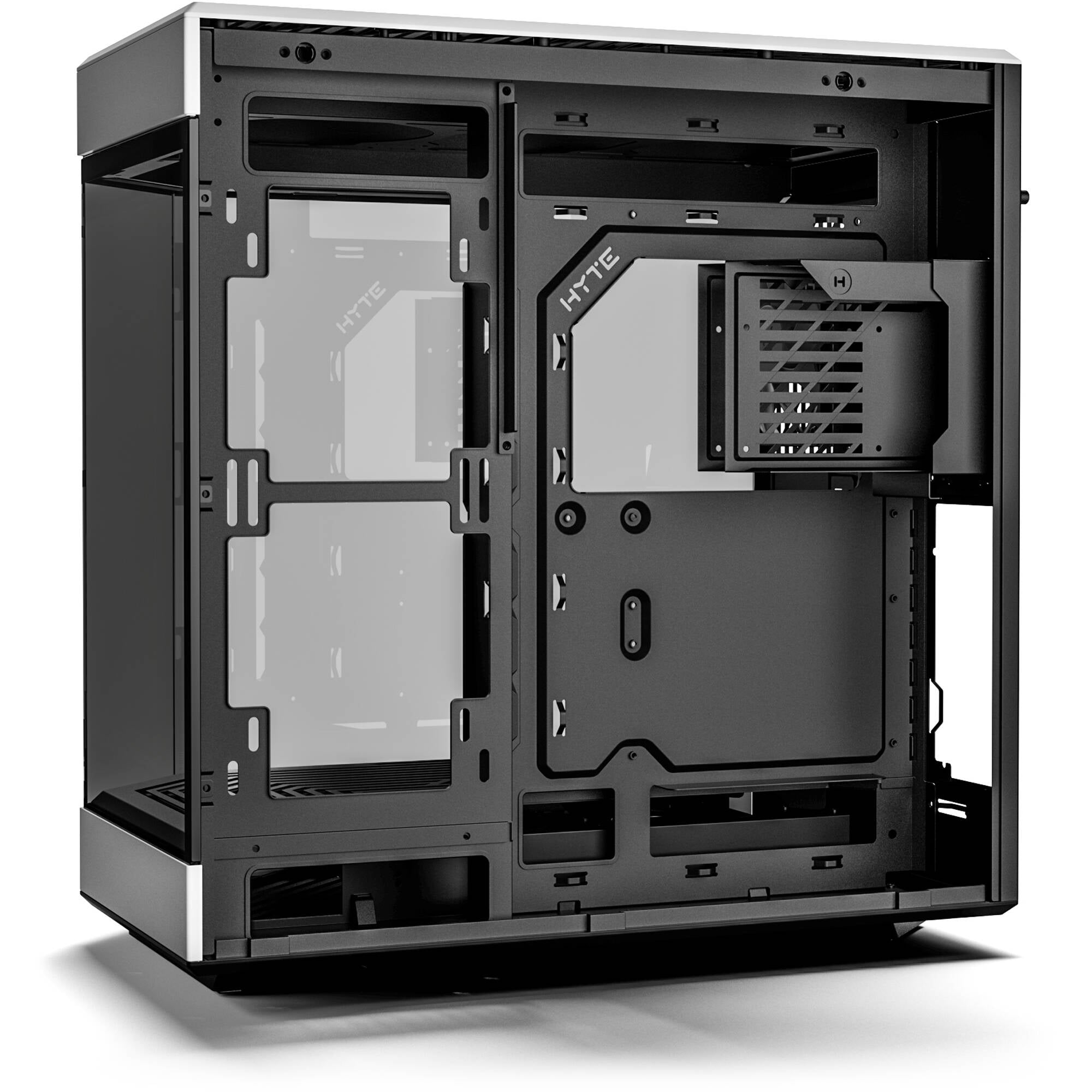

Easily route your cables through the case with a dedicated cable management space. Grommets assist in channeling your cables while tie-down points enable you to fix cables in place. GPU power connectors can be sent through the bottom section of the case for a fresh, minimalistic look.
Cooling Capabilities
Designed to embrace airflow, you can outfit the Y60 with liquid-cooling radiators or traditional high-speed fans. Fans can be installed on the top, rear, and bottom sections of the case while radiators are supported on the side, top, and rear panels. You can also install CPU coolers up to 6.2" high, giving you plenty of options for keeping your case nice and cool. Dust filters are conveniently located on the bottom, side, and top sections, preventing your fans from sucking in dust and clogging up your case.
Connectivity
Connect your peripherals to your PC with the I/O ports neatly fashioned on the bottom beveled edge of the Y60. Easily plug in your controllers and headsets with two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and a single 3.5mm combo audio jack.
In the Box
- HYTE Y60 Mid-Tower Case (White)
- PCIe 4.0 x16 Riser Card
- Limited 3-Year Warranty
Table of Contents
- Description
- Motherboard & Expansion Support
- Storage Solution
- Cable Management Space
- Cooling Capabilities
- Connectivity
HYTE Y60 Specs
Compatibility
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX |
| External Drive Bays | None |
| Internal Drive Bays | 2 x 3.5" or 4 x 2.5" |
| Expansion Slots | 6 x Low-Profile + 3 |
| Maximum GPU Length | 14.8" / 375 mm |
| CPU Cooler Height | 6.3" / 160 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 9.3" / 235 mm |
| PSU Mounting Location | Bottom |
Cooling
| Fan Mounting (Rear) | 1 x 120 mm |
| Fan Mounting (Side) | 2 x 120 mm or 2 x 140 mm |
| Fan Mounting (Top) | 3 x 120 mm |
| Fan Mounting (Bottom) | 2 x 120 mm or 2 x 140 mm |
| Fans Included (Front) | None |
| Fans Included (Rear) | 1 x 120 mm (1300 rpm) |
| Fans Included (Side) | None |
| Fans Included (Top) | None |
| Fans Included (Bottom) | 2 x 120 mm (1300 rpm) |
| Maximum Radiator Size (Rear) | 120 mm |
| Maximum Radiator Size (Side) | 280 mm |
| Maximum Radiator Size (Top) | 360 mm |
| Filter Locations | Bottom, Side, Top |
I/O
| I/O | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1 x USB-C (USB 3.1/3.2 Gen 2) |
| Media/Memory Card Slot | None |
| Audio I/O | 1 x 3.5 mm Input/Output |
| Display Outputs | None |
Physical
| Windowed Panel | Yes |
| Color | White |
| Material | Plastic, Steel, Tempered Glass |
| Built-In Lighting | No |
| Tool-Less Design | Thumbscrews, Screw-Less Drive Bays |
| Cable Management Space | Yes |
| Dimensions (W x H x D) | 11.2 x 18.2 x 18" / 285 x 462 x 456 mm |
Packaging Info
| Package Weight | 25.78 lb |
| Box Dimensions (LxWxH) | 21 x 20.7 x 14.6" |
HYTE Y60 Reviews
Very classy lines.. ultra modern looks!
By Manfred
Rated 5 out of 5
Date: 2022-12-06
WOW.. I build alot of systems.. alot of different case solutions. THIS ONE IS AMAZING! Very easy access, for tons of stuff! Cable management is phenomenal, and even has zip tie holds everywhere! I actually mounted two full size card inside.. One on the riser so it actually shows the good side of an video card!
GORGEOUS
By Natasha
Rated 5 out of 5
Date: 2022-08-09
What a gorgeous beast. Everything fits so snazzly and has great ventilation. No complaints so far.
A case that stands out finally
By Vincent
Rated 5 out of 5
Date: 2022-10-20
I understand it is easier to build what has been built before and perfect it, but I also really like it when I can get something that is well designed AND is unique. This case was really nice to build in for me and I love the fact that it came with the riser cable - it means my giant GPU isn't hanging off the motherboard and back panel, and also conveniently hides my poor cable management on the lower part of the motherboard (if you only look at it from the longer side). And it looks nice just because there's extra space after putting all the parts in. As others have before I put a little figurine (my Terraria Eye of Cthulhu) in there to balance it out. Really no complaints about it other than that the PSU mounts sideways so my muscle memory complains about not being able to find the switch without looking.
Awesome modern case
By John
Rated 5 out of 5
Date: 2022-09-09
I had trouble finding a case that I liked that didn't seem too much like a toy or overly stylized. Fortunately, I found the Y60. The case has a great build quality to it and has plenty of space for your cables behind the motherboard and the floor of the case. I enjoy the panoramic glass window design and allows you to show off your creativity in a classy way. I have not had any thermal issues, though I replaced the stock fans and added some where there were mounting points. I'm running an 12700k and a 3090 so it has the potential to get a little toasty if airflow wasn't kept in mind. The only limiting factor really is the GPU mounting which is only vertically. There is the ability to mount a 3-slot card, though I wouldn't say anything more than 2.5 slots would work for air cooled GPUs. Overall, very happy with my choice and would recommend to a friend.
