Description
x- Laminating Thermal Transfer Technology
- Print Resolution: 180 dpi
- Print Speed: 1.2" per Second (AC Power)
- Tape Sizes: 3.5-24mm
- Built-In Automatic Cutter
- QWERTY Keyboard
- 15-Character 2-Line Backlit LCD
- USB Port for PC Connectivity
- Design Software for Improved Workflow
- Runs on Rechargeable Battery or AC Power

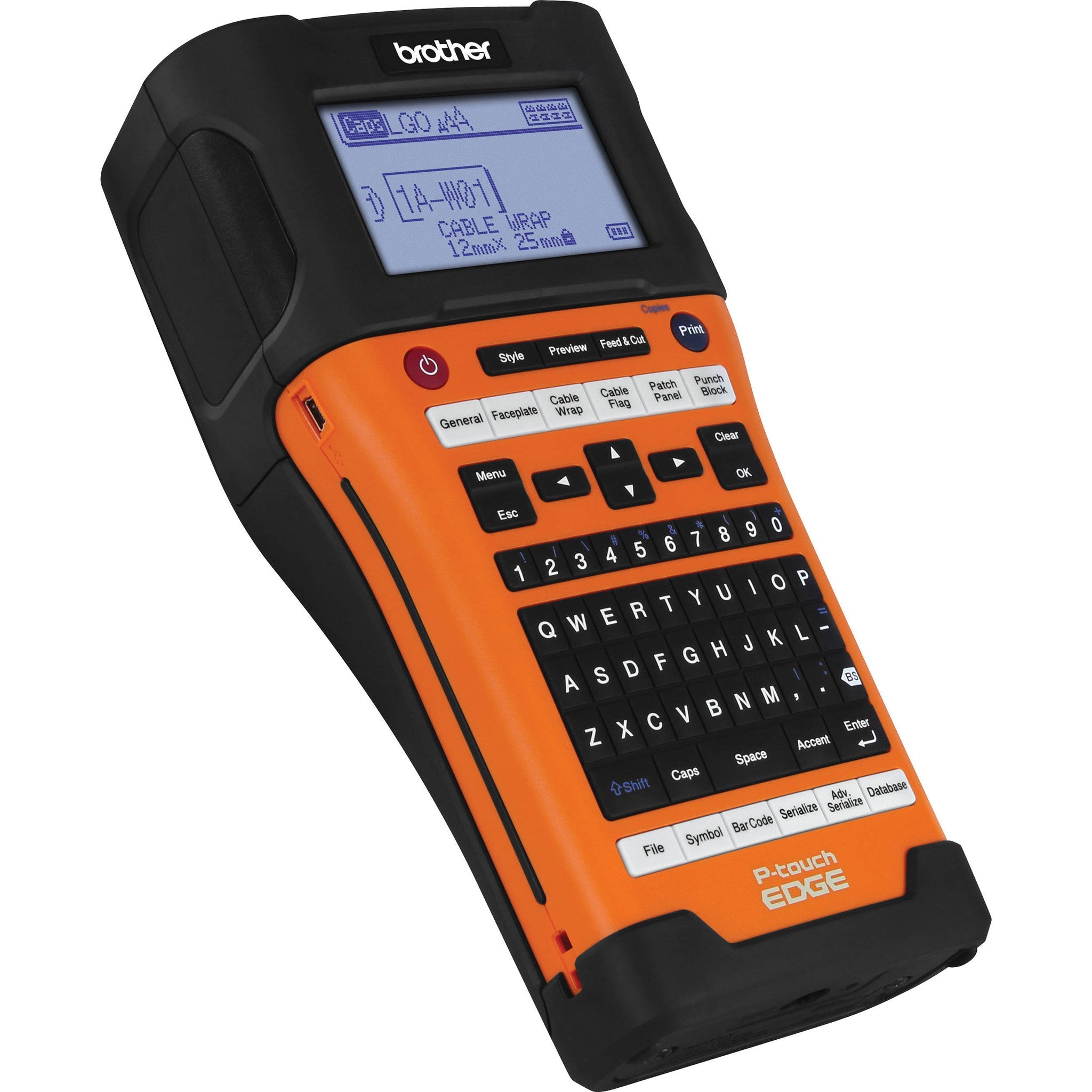

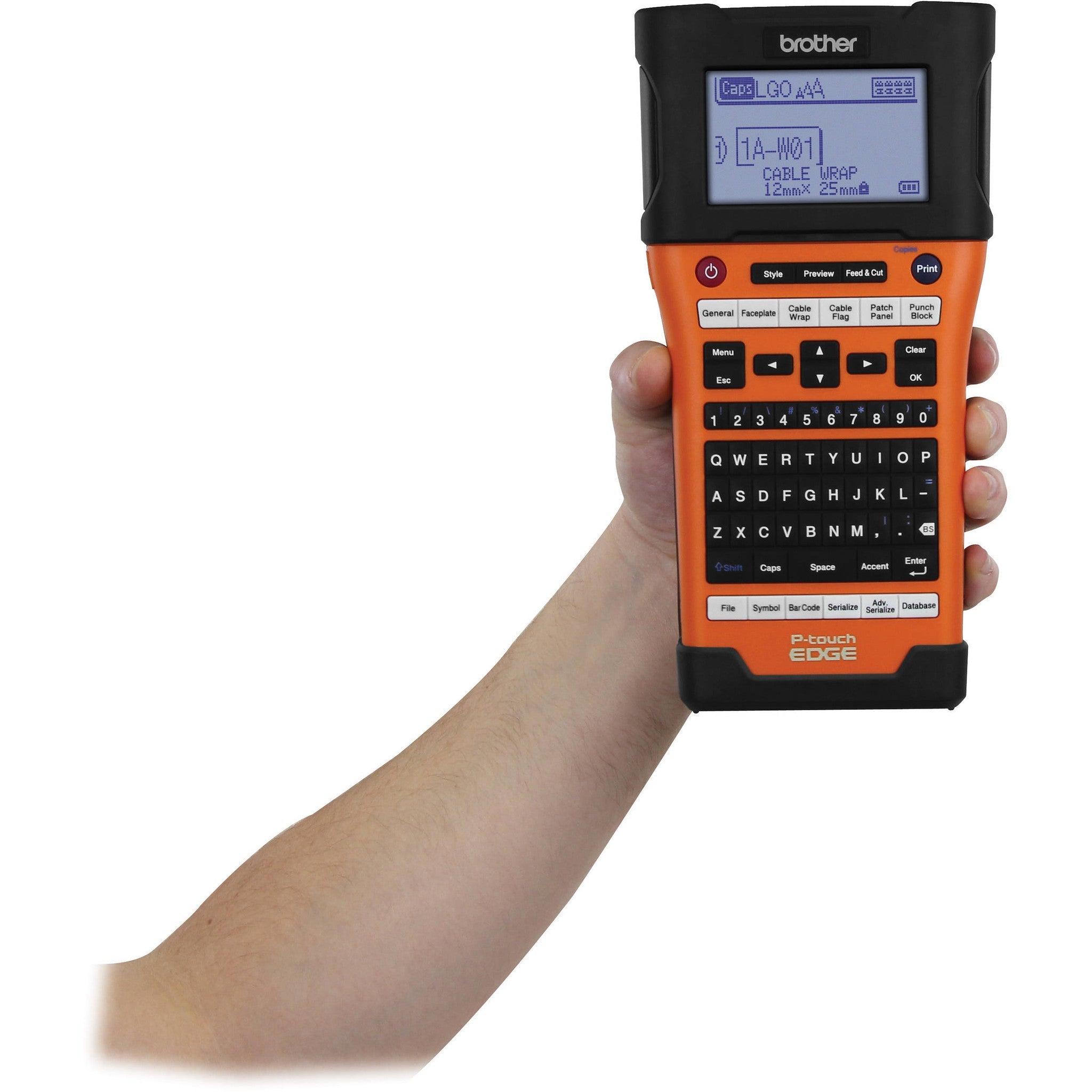

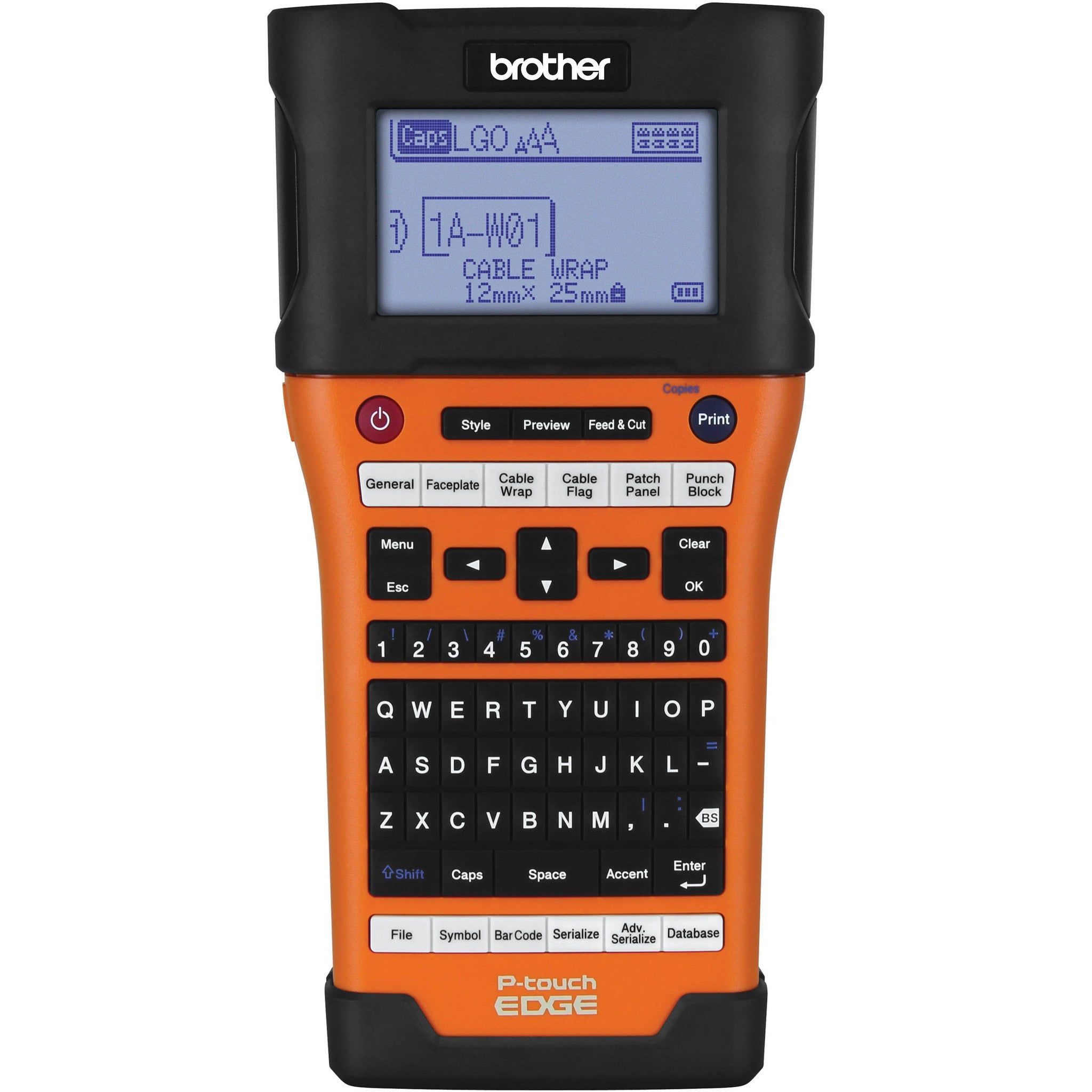

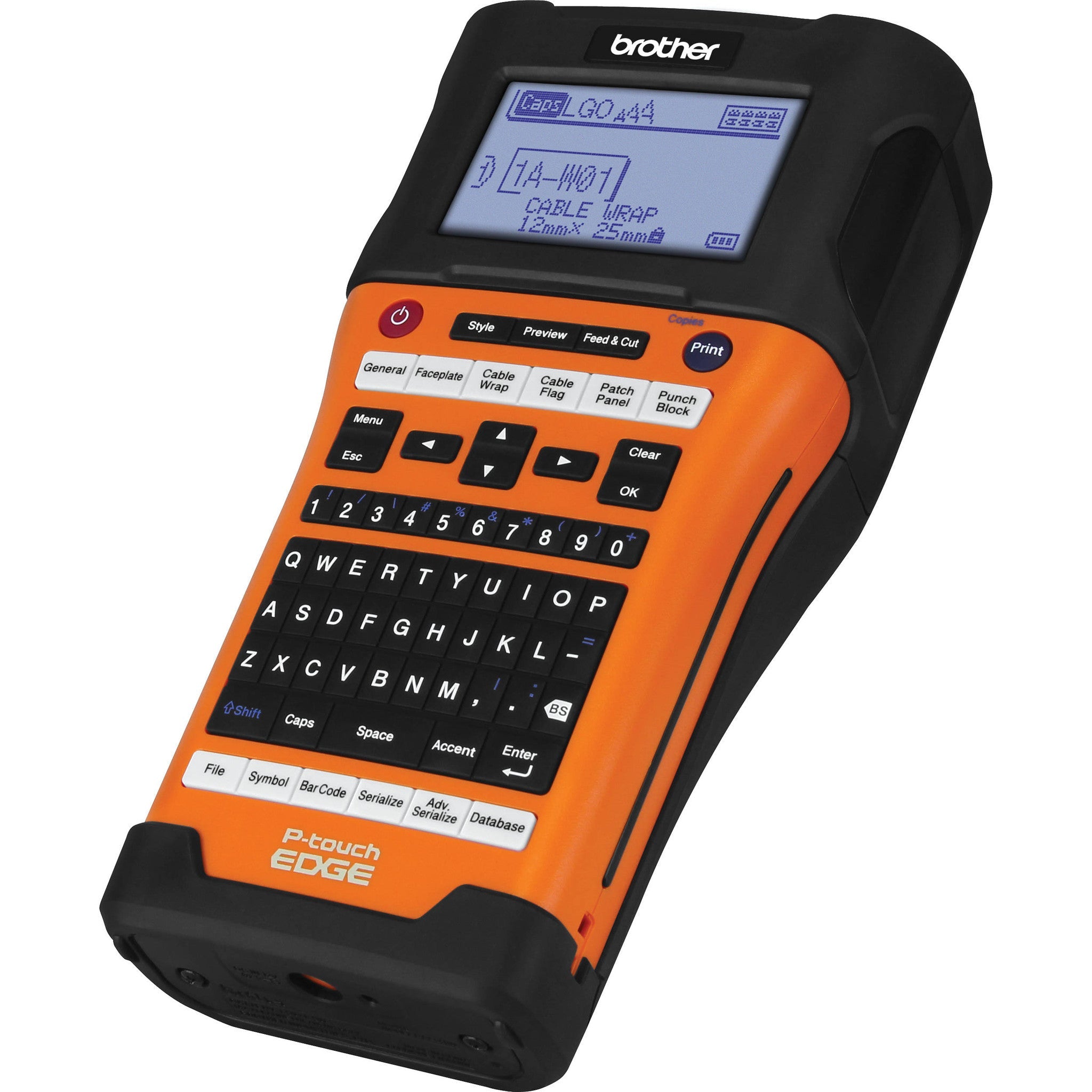

Featuring laminating thermal transfer technology, the PT-E500 Industrial Handheld Labeling Tool from Brother will help you fill numerous labeling needs. It works with tape sizes from 3.5 to 24mm and it has a print resolution of 180 dpi for sharp text. Produce labels quickly while on-site thanks to the included rechargeable Li-ion battery and a speed of 0.8" per second or 1.2" per second when plugging into AC power. Further improving usage is the inclusion of a built-in automatic cutter, a QWERTY keyboard, and a large 15-character, 2-line backlit LCD.
A USB port is available for computer connectivity which works with the included design software to print from databases and make custom labels. Smart labeling application keys enable quick printing for specific applications, such as cabling, faceplates, patch panels, and more, and it has advanced serialized options. Additionally, it is compatible with a variety of HGe and TZE tapes along with the HSe heat shrink tubing that is smear resistant.
UPC: 012502635987
| Hardware Features | |
|---|---|
| Model Type | Industrial handheld |
| Tape Family | HGe, TZe, HSe |
| Tape Sizes | 3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm |
| Tape Length | 26.2' (8 m) |
| Tape Technology | Laminating thermal transfer |
| Tape Types | Standard adhesive, extra-strength adhesive, flexible ID tape, heat shrink tube, tamper-evident, iron-on fabric, acid-free |
| LCD | Large 15-character x 2-line backlit LCD |
| Print Resolution | 180 dpi |
| Print Speed | AC Power: 1.2" (30 mm) per second Battery: 0.8" (20 mm) per second |
| Keyboard | QWERTY with rubber keys |
| Cutter | Built-in fully automatic |
| Batteries | BA-E001 rechargeable Li-ion battery pack |
| AC Adapter | AD-E001, included |
| Interface | Mini-USB |
| Number of Fonts | 14 (Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic) |
| Font Styles | 10 (Normal, Bold, Outline, Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid) |
| Font Sizes | 9 (6pt, 9pt, 12pt, 18pt, 24pt, 36pt, 42pt, 48pt, Auto) |
| Built-in Symbols | 384 industrial |
| Maximum Print Height | 0.7" (18 mm) |
| Maximum Print Lines | 7 lines standalone |
| Multi-Block | Up to 99 blocks |
| Label Length Setting | Auto, 1.0-39.3" (25-999 mm) |
| Auto Incrementation | Standard and advanced serialization |
| Auto Numbering | Yes |
| Horizontal Alignment | Center, left, right, justified |
| Vertical Printing | Yes |
| Mirror Printing | No |
| Rotate Printing | Input and rotate line by line, rotate & repeat |
| Text Insert | Yes |
| Text Framing / Fill Pattern | 6 frames / no fill patterns |
| Multi-Copy Print | Up to 99 copies |
| Memory | 99 files or 18,297 characters Up to 6 MB downloadable templates, databases, images |
| Date/Time Stamp | No |
| Built-In Designs/Templates | General, Faceplates, Cable Wrap, Cable Flag, Heat Shrink, Patch Panel, Punch Block |
| Barcoding | Standalone: 9 (Code39, Code128, ITF (I-2of5), GS1-128 (UCC/EAN128), Codabar (NW-7), UPC-A, UPC-E, EAN8, EAN13) Computer: 21 (Code39, Code128, ITF (I-2of5), GS1-128 (UCC/EAN128), GS1 DataBar (RSS), GS-1 Composite, Codabar (NW-7), UPC-A, UPC-E, EAN8, EAN13, ISBN-2, ISBN-5, Postnet, Laser Barcode, PDF-417, QR Code, Micro QR Code, Data Matrix, MaxiCode, Aztec) |
| PC Connectivity | PC: Downloading and printing Mac: Printing only |
| OS Compatibility | Windows 8, 7, Vista Mac OS X 10.6 and later |
| Model Details | |
|---|---|
| Dimensions | 4.9 x 3.7 x 9.8" (12.4 x 9.4 x 24.9 cm) |
| Weight | 2 lb (0.9 kg) without tape and battery |
| Packaging Info | |
|---|---|
| Package Weight | 7.05 lb |
| Box Dimensions (LxWxH) | 15.3 x 13.0 x 5.0" |

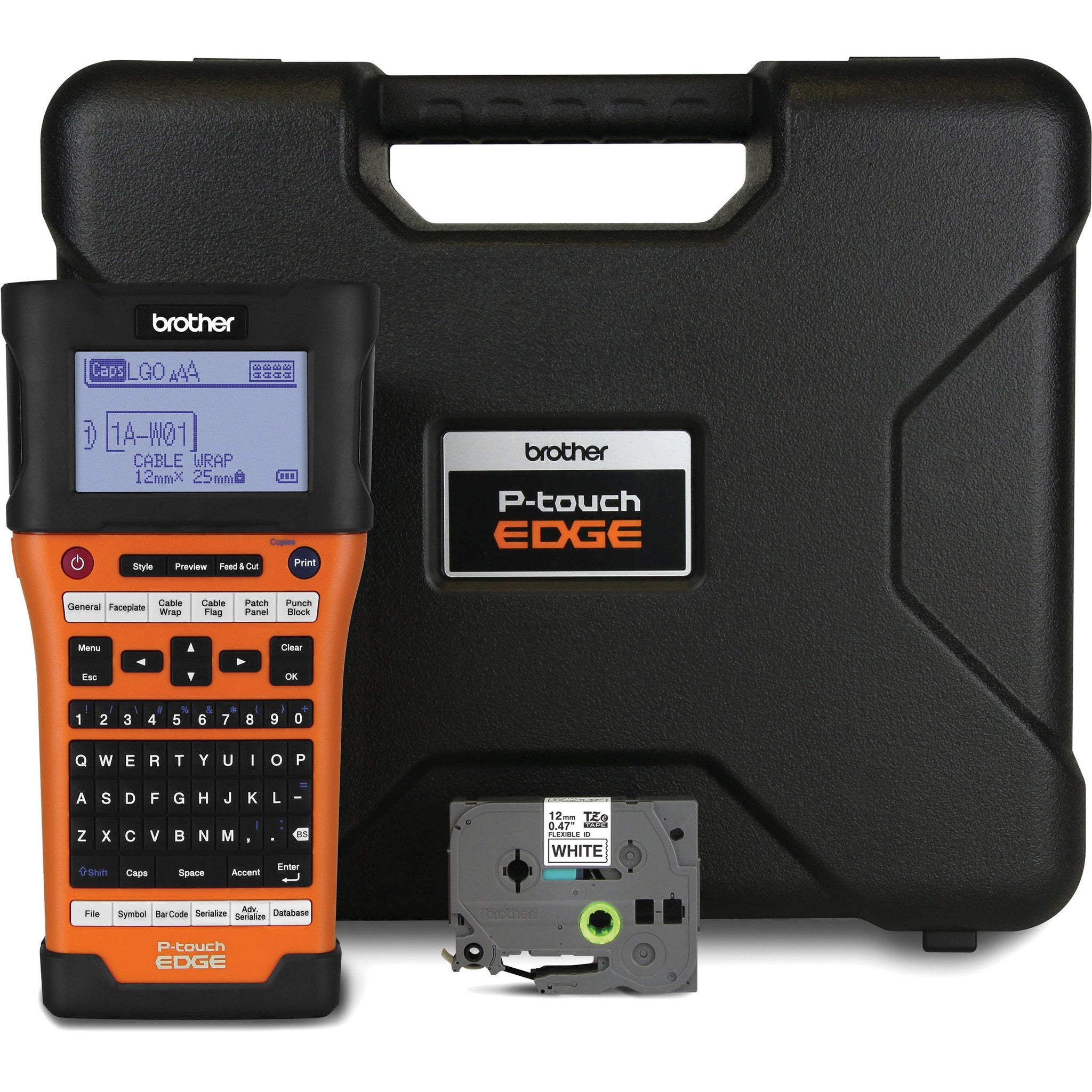

In the Box
Brother PT-E500 Industrial Handheld Labeling Tool
- BAE001 Rechargeable Li-Ion Battery Pack (7.2V, 1900mAh)
- ADE001 AC Power Adapter
- TZeFX231 Flexible ID Tape (Black on White, 0.47" x 26.2')
- Carrying Case
- Software CD-ROM
- Limited 2-Year Warranty
