xBrother HL-L9410CDN Overview
- 1Description
- 2Wi-Fi Option
- 3Media Handling
- 4Optional Media Handling
- 5Paper Handling Size (520-Sheet Standard Input Tray)
- 6Paper Handling Size (100-Sheet Multipurpose Tray)
- 7Supported Media Types
- 8Brother-Recommended Paper
- 9Standard Network Features
- 10Supported Network Protocols (IPv4)
- 11Supported Network Protocols (IPv6)
- 12Security Functions
- 13Security Protocols (Wired)
- 14Security Protocols (Wireless)
- 15Wireless Network Security
- 16Emulation
- 17Other Features

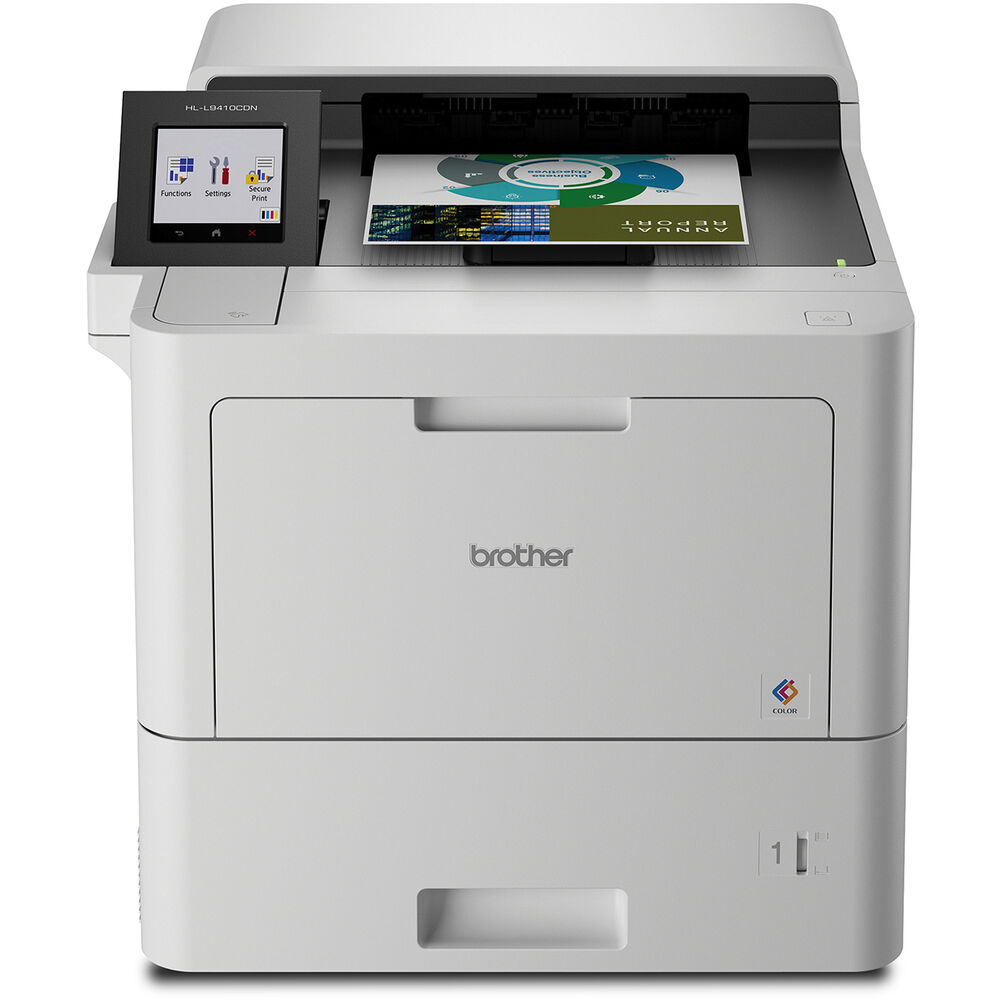

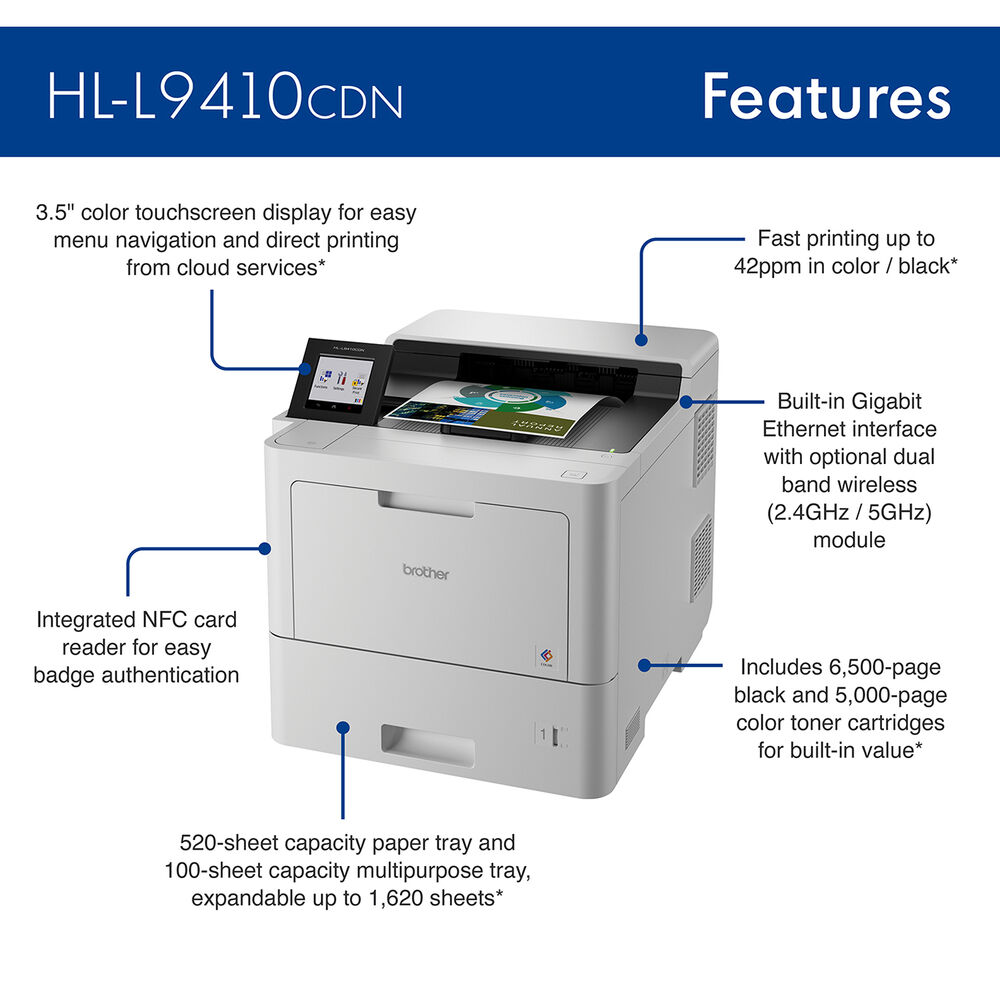

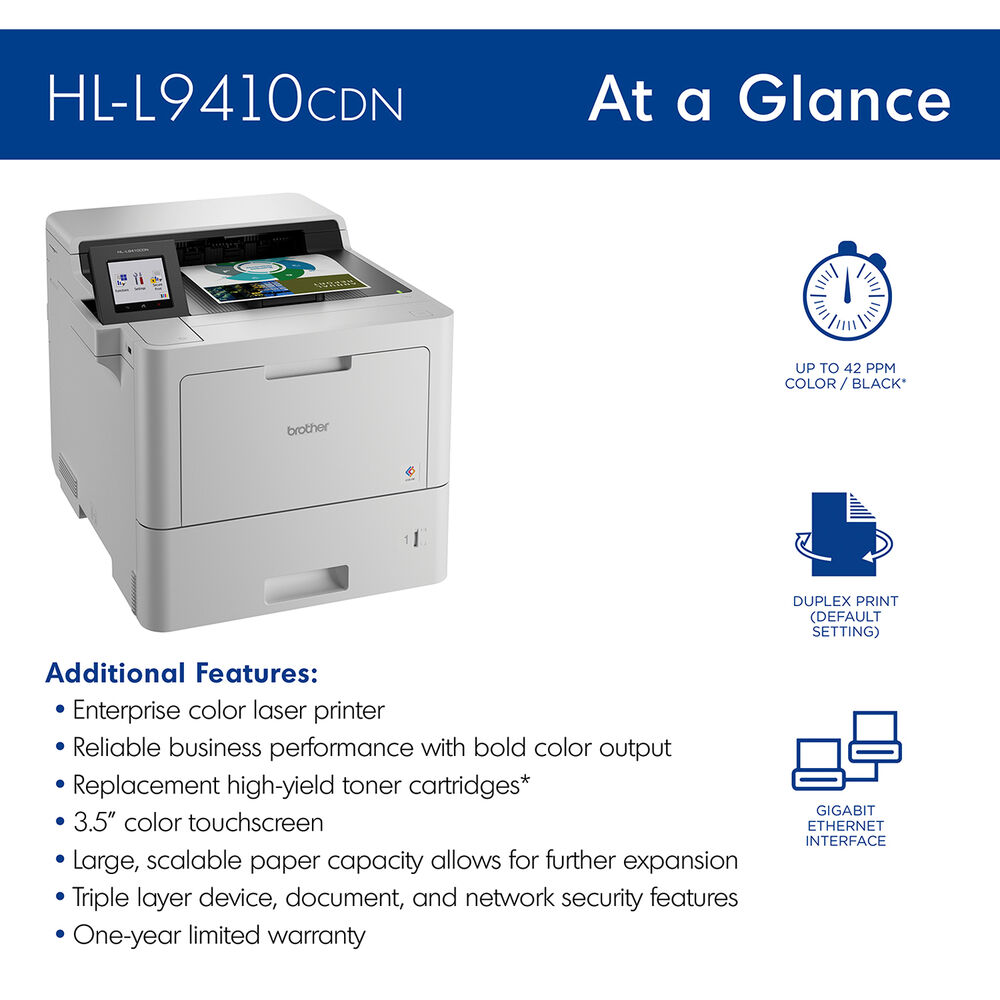

In a compact footprint ideal for mid- to large-sized workgroups, the Brother HLL9410CDN Enterprise Color Laser Printer provides enterprise-level performance, advanced security features, and a 2400 x 600 dpi black/color resolution. This high-performance printer helps to increase productivity with automatic duplex printing and fast print speeds up to 42 ppm. The first page printout is 10 seconds. Triple layer security features help to limit document and device access and protect against network intrusions.
A 520-sheet standard paper tray and 100-sheet multipurpose tray support up to legal size paper while multiple additional tray options can be added (see Features section below). For connectivity, the printer offers USB and Gigabit Ethernet interfaces and supports an optional Wi-Fi module (more info below). It also has two USB-A host ports for flash drives and card readers.
Wi-Fi Option
- NC-9000W dual-band Wi-Fi module
- Allows mobile device compatibility via AirPrint, Brother Mobile Connect, Mopria
Media Handling
- 520-sheet standard paper input tray
- 100-sheet multipurpose tray
- 250-sheet output tray
Optional Media Handling
- Up to three LT-330CL 250-sheet lower paper trays
- Or up to two LT-340CL 500-sheet lower paper trays
- Or TT-4000 tower with four 520-sheet trays and a stabilizer with wheels (requires TC-4100 connector)
Paper Handling Size (520-Sheet Standard Input Tray)
Legal, letter, executive, A4, A5, A6, B5, B6, Folio (8 x 13")
Paper Handling Size (100-Sheet Multipurpose Tray)
Custom sizes from 3 x 5" to 8.5 x 14", envelopes (Com-10, C5, DL, Monarch)
Supported Media Types
Plain, glossy paper, envelopes (#10), bond, labels, recycled paper, colored paper, letterhead
Brother-Recommended Paper
Avery Laser Label #5160, Hammermill Laser Paper 24 lb, NewPage Futura Laser Gloss 80 lb, Text/32 lb Bond, Xerox 4200DP 20 lb
Standard Network Features
Printing, secure function lock, secure print
Supported Network Protocols (IPv4)
Web services, APIPA (auto IP), ARP, BOOTP, CIFS client, custom raw port/port 9100, DHCP, DNS Resolver, FTP server, HTTP/HTTPS server, ICMP, IPP/IPPS, LDAP, LLMNR Responder, LPR/LPD, mDNS, RARP, SMTP client, SNMPv1/v2c/v3, SNTP client, TELNET server, TFTP client and server, WINS/NetBIOS name resolution
Supported Network Protocols (IPv6)
Web Services, NDP, RA, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, custom raw port/port 9100, IPP/IPPS, SMTP client, FTP server, CIFS client, TELNET server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP client, LDAP
Security Functions

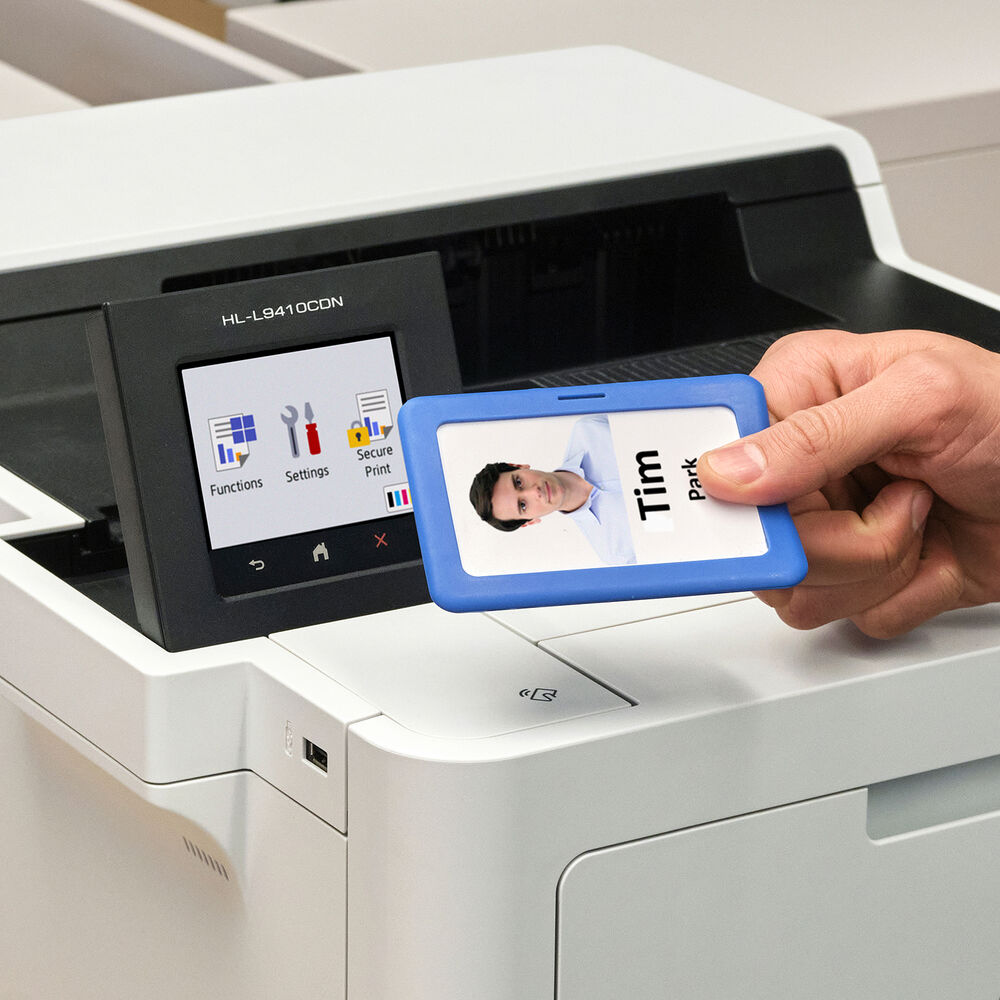

Integrated NFC card reader, setting lock, active directory (LDAP), enterprise security (802.1x), IPSec, LDAP, external card reader compatibility, TLS/SSL, IP filter, Syslog reporting, secure BIOS, password intelligence, secure function lock, lock slot, secure print
Security Protocols (Wired)
SMTP-AUTH, SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec, SSL/TLS (IPPS, HTTPS, SMTP)
Security Protocols (Wireless)
SMTP-AUTH, SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec, SSL/TLS (IPPS, HTTPS, SMTP)
Wireless Network Security
WEP 64/128 bit, WPA/PSK (TKIP/AES), WPA2-PSK (AES)
Emulation
BR-Script, PCL5c, PCL5e, PCL6 (PCL XL Class 3.0), PDF version 1.7, XPS version 1.0
Other Features
- Toner save mode: Yes
- PANTONE calibrated: No
- Citrix ready
- Printer driver compatibility: Windows, macOS, Linux
UPC: 012502666004

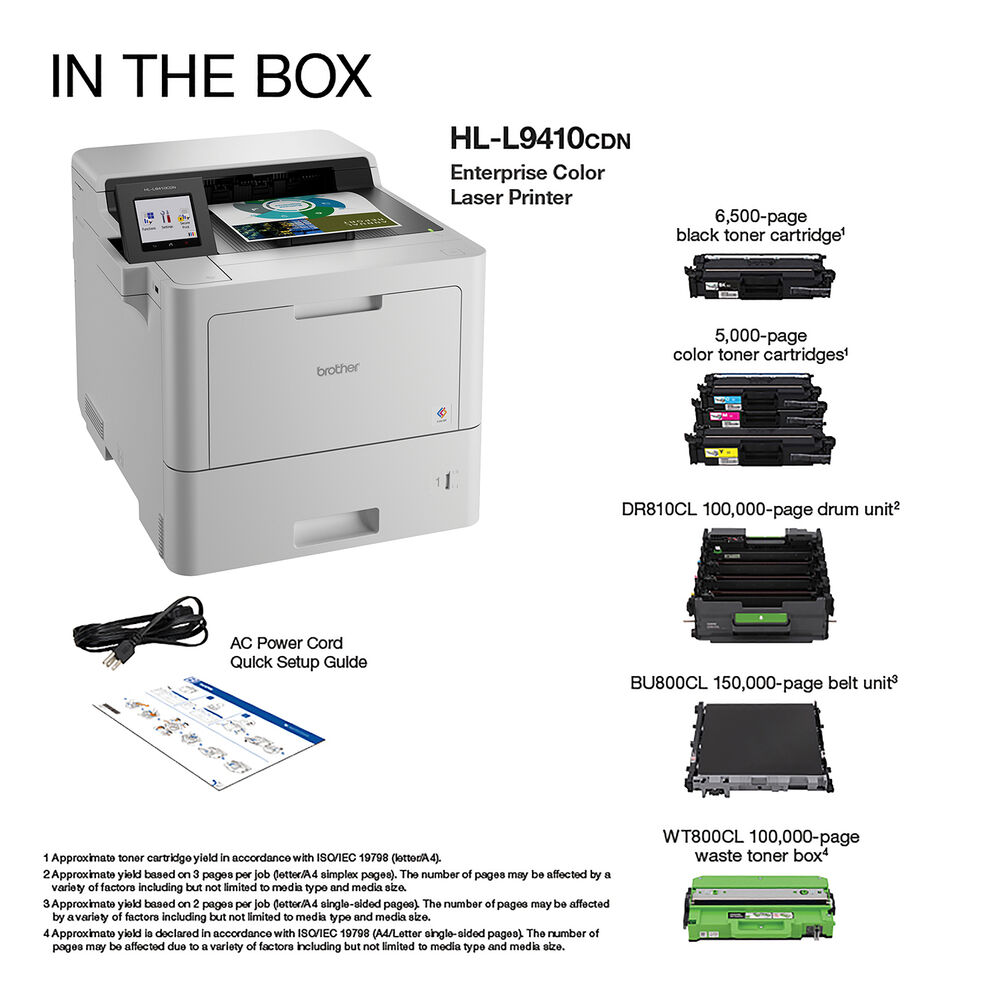

In the Box
- Brother HLL9410CDN Enterprise Color Laser Printer
- Black Toner Cartridge (6500 Pages)
- Cyan Toner Cartridge (5000 Pages)
- Magenta Toner Cartridge (5000 Pages)
- Yellow Toner Cartridge (5000 Pages)
- DR-810CL Drum Cartridge
- Belt Unit
- Waste Toner Box
- Power Cord
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Wi-Fi Option
- Media Handling
- Optional Media Handling
- Paper Handling Size (520-Sheet Standard Input Tray)
- Paper Handling Size (100-Sheet Multipurpose Tray)
- Supported Media Types
- Brother-Recommended Paper
- Standard Network Features
- Supported Network Protocols (IPv4)
- Supported Network Protocols (IPv6)
- Security Functions
- Security Protocols (Wired)
- Security Protocols (Wireless)
- Wireless Network Security
- Emulation
- Other Features
Brother HL-L9410CDN Specs
| Functions |
Print
|
Printer
| Printing Technology |
Laser
|
| Color Type |
Color
|
| Configuration |
4 x Individual Cartridge
|
| Compatible Cartridges |
Brother TN810, Brother TN810XL
|
| Print Resolution |
2400 x 600 dpi
|
| Borderless Printing |
No
|
| Duplex Printing |
Yes
|
| Print Speed (By Time) |
42 ppm (Black)
42 ppm (Color) |
| First Print Out Time |
10 Seconds (Black)
10 Seconds (Color) |
| Monthly Duty Cycle |
120,000 Pages
12,000 Pages (Recommended) |
Printer Media Handling
| Media Handling |
1 x Input Tray, Multipurpose Tray
|
| Media Sizes |
Input Tray 1
Maximum: 8.5 x 14" / 21.6 x 35.6 cm Multipurpose Tray Minimum: 3 x 5" / 7.6 x 12.7 cm Maximum: 8.5 x 14" / 21.6 x 35.6 cm |
| Media Weight |
Input Tray 1, Multipurpose Tray: 16 to 61 lb
|
| Paper Capacity |
Input Tray 1: 520 x Sheet
Multipurpose Tray: 100 x Sheet Output Tray: 250 x Sheet |
Connectivity
| Inputs/Outputs |
USB-B 2.0, RJ45, USB-A, USB-A
|
| Wireless |
Wi-Fi
*Via Optional Adapter |
| Processor Speed |
800 MHz
|
| Internal Memory |
1024 MB
|
| Mobile App Compatible |
Yes, Adapter Required (Not Included)
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| OS Compatibility |
Windows 10 or Later
macOS 10.14 or Later Windows Server 2012 or Later Linux *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Environmental
| Operating Temperature |
50 to 90°F / 10 to 32°C
|
| Operating Humidity |
20 to 80%
|
General
| Display Size |
3.5"
|
| Display Type |
Color Touchscreen LCD
|
| Power Source |
AC Adapter (Included)
|
| Battery |
No
|
| AC Input Power |
110 to 120 VAC, 50 / 60 Hz
|
| Power Consumption |
790 W (Maximum)
90 W (Ready) 18.4 W (Standby) 1 W (Sleep) 0.02 W (Off) |
| Max Acoustic Noise |
56.5 dBA
|
| Certifications |
ENERGY STAR, EPEAT Silver
|
| Dimensions (W x H x D) |
17.4 x 15.9 x 21.3" / 44.2 x 40.4 x 54.1 cm
|
| Weight |
63.2 lb / 28.7 kg
|
Packaging Info
| Package Weight |
74 lb
|
| Box Dimensions (LxWxH) |
25 x 24.5 x 22"
|
