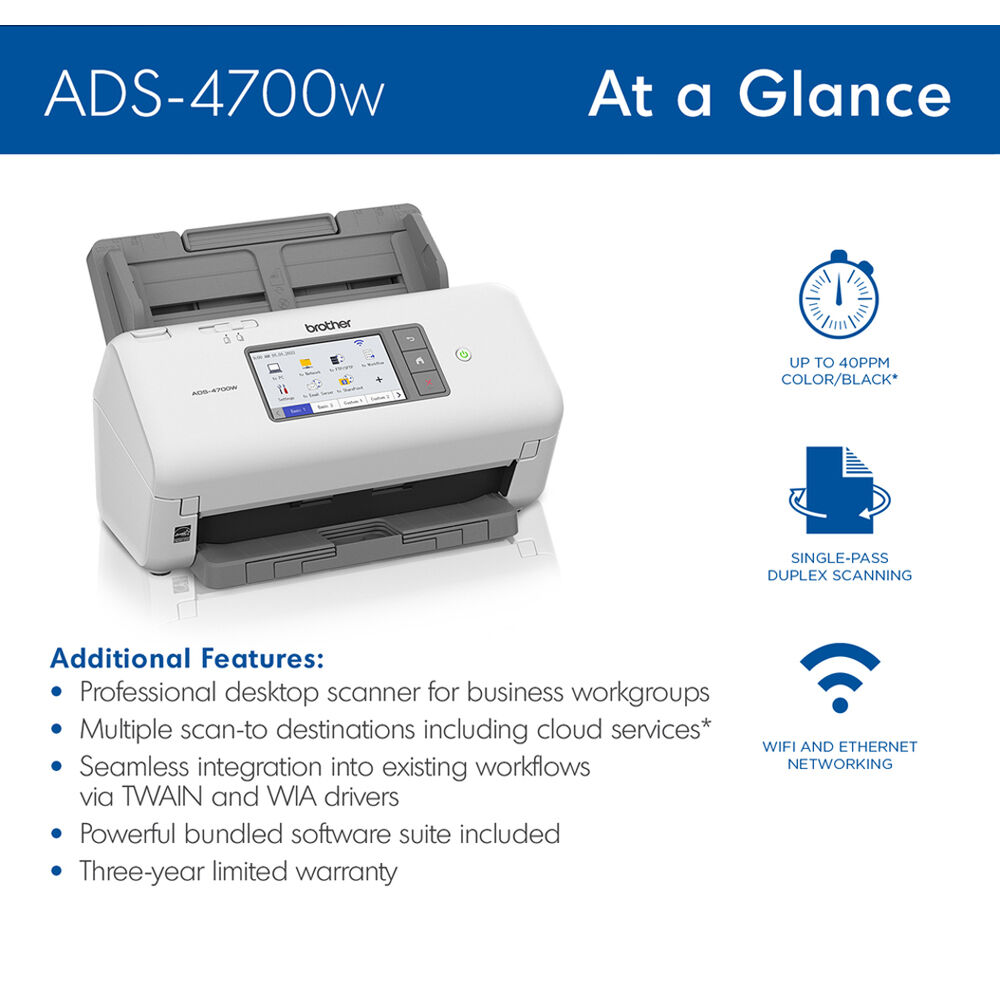

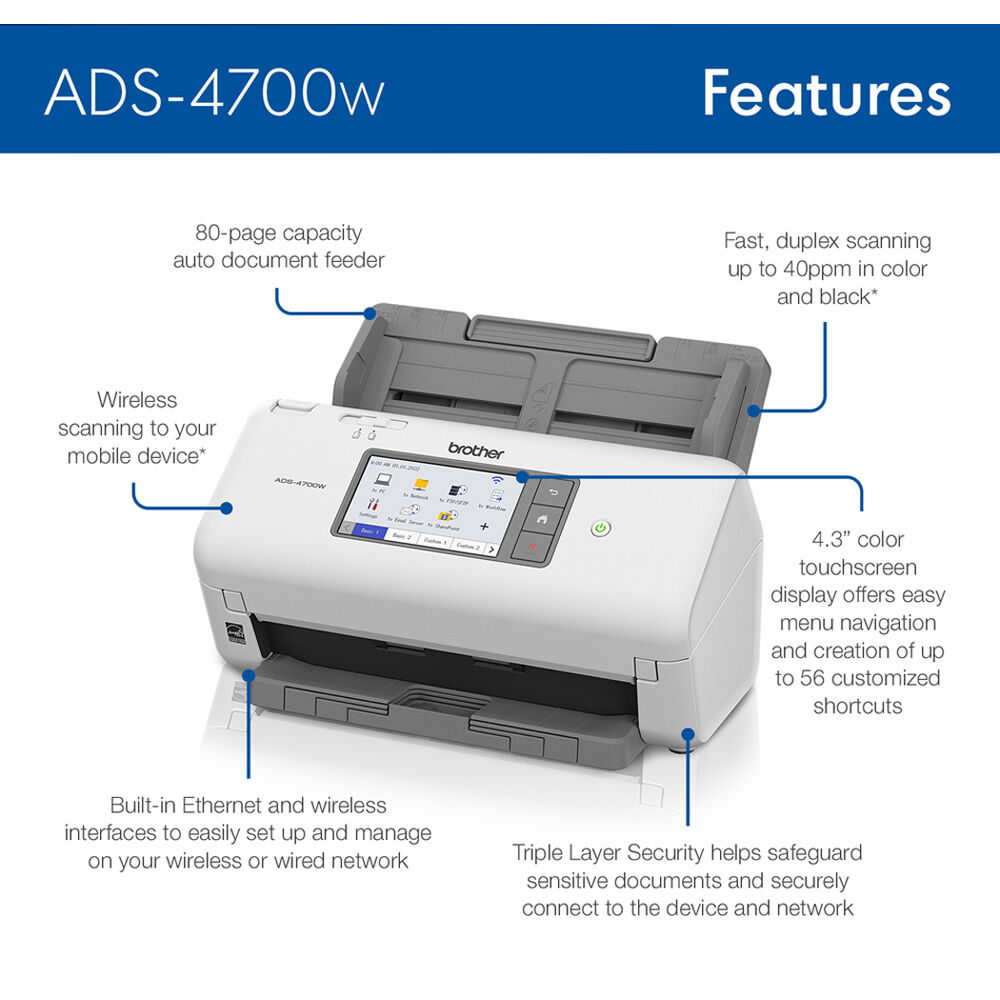

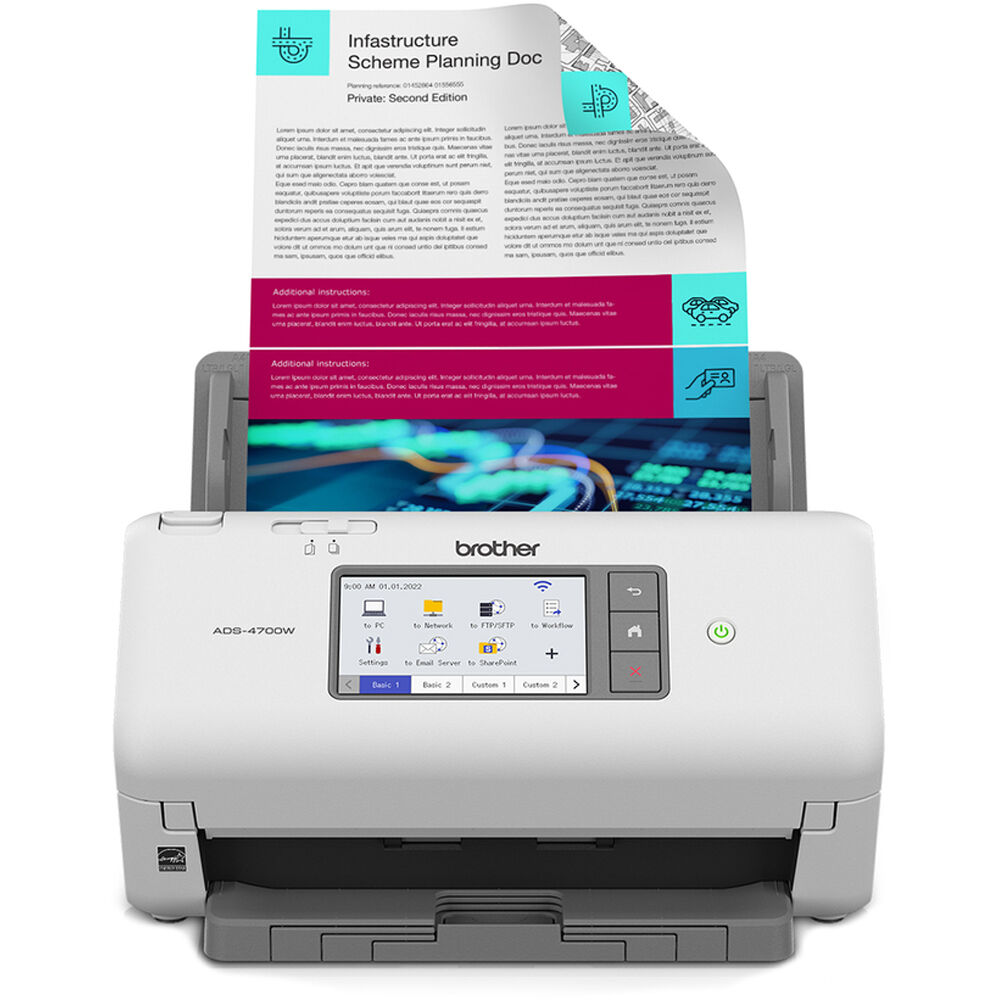

The Brother ADS-4700W Professional Wireless Desktop Scanner is a compact solution with an 80-page auto document feeder (ADF) and 600 x 600 dpi optical scan resolution. The ADS-4700W features USB Type-B and Type-A ports, Ethernet connectivity, and built-in Wi-Fi. This versatility allows you to send scans to your computer, to an optional USB memory stick, to your network, or to AirPrint, Brother Mobile Connect, and Wi-Fi Direct mobile print services.
A 4.3" color touchscreen allows you to efficiently use the scanner and even program 56 shortcuts. An included software bundle lets you apply optimal image correction settings as well as create, edit, and convert scanned documents into different file formats/document types, including searchable PDFs.
Scan stacks of up to 80 pages in the auto document feeder (ADF), and add more pages thanks to continuous scanning mode. The ADS-4700W is also capable of advanced image optimization, with features such as auto deskew, auto image rotation, and bleed-through removal.
Other features include triple layer security that helps safeguard sensitive documents and securely connect to computers and networks.
Included Software
- Brother Mobile Connect for iOS and Android
- Brother ScanEssentials Lite for Windows
- Kofax PaperPort 14SE with OCR for Windows
- Kofax Power PDF for Windows
- Brother iPrint&Scan for Windows and Mac
Advanced Scanning Features
Continuous scan, barcode metadata, index, multi-page feed sensor, 1 to 2 scan, 2 to 1 scan, auto start scan, color drop out, hole punch removal, background color removal, auto image rotation, auto scan size, bleed-through removal, scan preview, document separation, ADF auto deskew, blank page skip
Barcode Types Supported
UPC-A, UPC-E, JAN8, JAN13, Code39, Code93, ITF, Code128, Codabar, GS1_128, PDF417, QR Code, Data Matrix
Supported Media Types
Plain, receipts, photos (carrier sheet required), business cards, plastic/laminated cards (including embossed), index card
Supported Plastic Card Sizes
Minimum/maximum: 2.13 (W) x 3.37" (L)
Supported Plastic Card Thickness
Embossed: up to 1.32mm / without embossing: up to 1.1mm
Scan File Formats
PDF single-/multi-page (secure PDF, searchable PDF, signed PDF, PDF/A, high compression PDF), XLSX, BMP, DOCX, JPEG, PPTX, TIFF single-/multi-page (TIF), TXT
Supported Network Protocols (IPv4)
APIPA (Auto IP), DHCP, DNS Resolver, HTTP/HTTPS Server, ICMP, LDAP, LLMNR Responder, mDNS, SNMPv1/v2c/v3, SNTP Client, WINS/NetBIOS Name Resolution, Web Services (Scan)
Supported Network Protocols (IPv6)
RA, DNS Resolver, mDNS, LLMNR Responder, HTTP/HTTPS Server, ICMPv6, SNTP Client, Web Services (Scan)
Security Functions
LDAP, IP filter, setting lock, TLS/SSL, enterprise security (802.1x), active directory, secure function lock
Security Protocols (Wired)
SMTP-AUTH, SNMP v3, SSL/TLS (IPPS, HTTPS, SMTP), 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Security Protocols (Wireless)
SSL/TLS (IPPS, HTTPS, SMTP)
Wireless Network Security
WEP 64/128 bit, WPA/PSK (TKIP/AES), WPA2-PSK (AES)
Other Features
- Cerner certified
- Kofax VAR Elite / Kofax Express compatibility
- Paper jam sensor
UPC: 012502666356

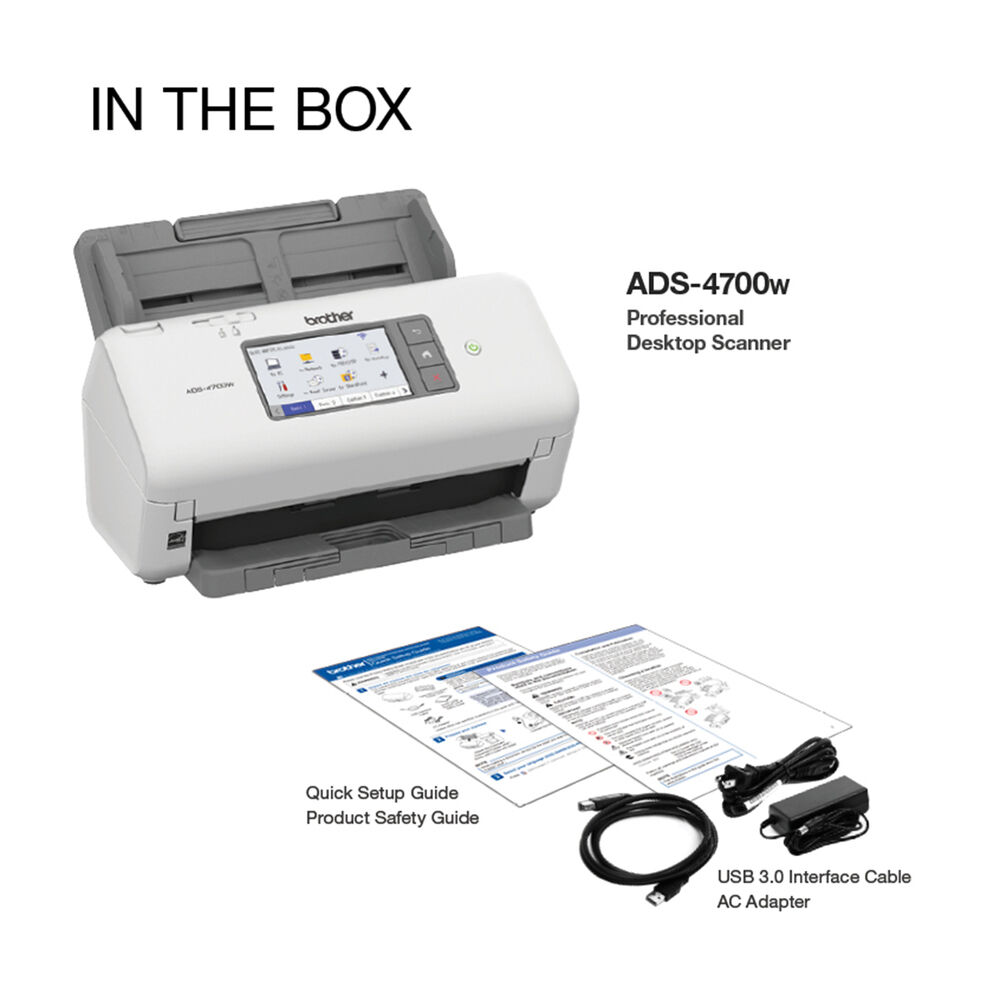

In the Box
- Brother ADS-4700W Professional Wireless Desktop Scanner
- USB 3.0 Interface Cable
- AC Adapter
Table of Contents
- Description
- Included Software
- Advanced Scanning Features
- Barcode Types Supported
- Supported Media Types
- Supported Plastic Card Sizes
- Supported Plastic Card Thickness
- Scan File Formats
- Supported Network Protocols (IPv4)
- Supported Network Protocols (IPv6)
- Security Functions
- Security Protocols (Wired)
- Security Protocols (Wireless)
- Wireless Network Security
- Other Features
Brother ADS-4700W Specs
Scanner
| Type | Automatic Document Feeder (ADF) |
| Maximum Resolution | 600 dpi (Optical) 1200 x 1200 dpi (Interpolated) |
| Scan Modes | Color, Grayscale, Monochrome |
| Color Depth | 24-Bit (Internal) |
| Grayscale Depth | 8-Bit (Internal) |
| Image Sensor | 2 x Contact Image Sensor (CIS) |
| Duplex Scanning | Yes |
| Single Pass Duplex | Yes |
| Scan Speed | Duplex Speed 80 ipm in Color/Black & White Simplex Speed 40 ppm in Color/Black & White |
| Automatic Image Corrections | Yes |
Scanner Media Handling
| Scan Sizes | ADF Minimum: 2 x 2" / 5.1 x 5.1 cm Maximum: 8.5 x 14" / 21.6 x 35.6 cm |
| Paper Capacity | ADF: 80 x Sheet |
| Media Weight | 11 to 53 lb |
| Daily Duty Cycle | 6000 Scans |
Connectivity
| Inputs/Outputs | USB-B, USB-A, RJ45 |
| Wireless | Wi-Fi |
| Wi-Fi | 802.11b/g; Single-Band (2.4 GHz) |
| Scanner Drivers | TWAIN, WIA, ISIS, SANE |
| OS Compatibility | Windows macOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Environmental
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Operating Humidity | 20 to 80% |
General
| Display Size | 4.3" |
| Display Type | Color Touchscreen LCD |
| Power Source | AC Adapter |
| Battery | None |
| Power Consumption | 26 W (Maximum) 8.6 W (Ready) 1.7 W (Sleep) |
| Certifications | ENERGY STAR, EPEATSilver *as per Manufacturer |
| Dimensions | 11.7 x 7.5 x 8.5" / 29.7 x 19.1 x 21.6 cm |
| Weight | 6.4 lb / 2.9 kg |
Packaging Info
| Package Weight | 8.395 lb |
| Box Dimensions (LxWxH) | 15.9 x 12.6 x 10.5" |
